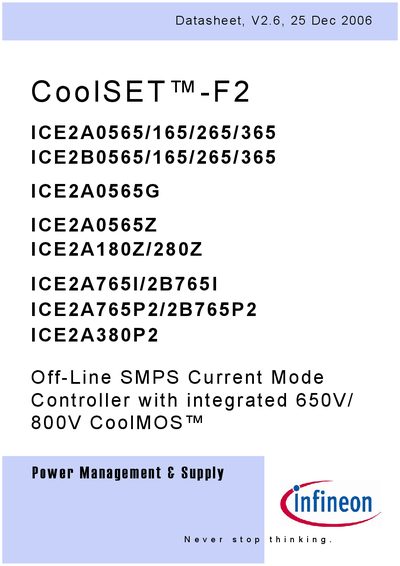

infineon CoolSET -F2 ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565G ICE2A0565Z ICE2A180Z/280Z ICE2A765I/2B765I ICE2A765P2/2B765P2 ICE2A380P2 Off-Line SMPS Current Mode Controller

This is a switch power supply controller, integrated 650V/800V CoolMOS

Brand: Infineon
Category: Power Management
Document type: Datasheet
Language: English
Pages: 36
File format: PDF
File size: 1.9 MB
Published: 05 April, 2012
Updated: 01 October, 2023
Models: ICE2A0565, ICE165, ICE265, ICE365, ICE2B0565, ICE2A0565G, ICE2A0565Z
MD5 checksum: A4E5F8533C6A9B5ACAEFBE92D92AFA1C
PDF: infineon CoolSET -F2 ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565G ICE2A0565Z ICE2A180Z/280Z ICE2A765I/2B765I ICE2A765P2/2B765P2 ICE2A380P2 Off-Line SMPS Current Mode Controller PDF

About this manual

The CoolSET‑F2 family is an off‑line SMPS current‑mode controller that integrates 650 V/800 V CoolMOS devices. It provides low standby power, auto‑restart protection, and a range of package options (DIP‑8, DIP‑7, TO‑220, DSO‑16/12). The datasheet details electrical characteristics, pin functions, and layout recommendations for designers.

Key features include adjustable peak‑current limitation, soft‑start with auto‑restart, internal voltage reference, and RoHS‑compliant, lead‑free construction. The document also lists part numbers (ICE2A0565, ICE2A380P2, etc.) with their voltage ratings, switching frequencies, and power ratings.

What's inside

Pin Configuration and Functionality
Functional Description
Soft‑Start and Auto‑Restart
Oscillator and Frequency Reduction
Current Limiting
Electrical Characteristics
Typical Performance Characteristics
Layout Recommendation
Outline Dimension

Specifications

Supply voltage range (VCC pin)	8.5 V – 21 V
Maximum switching frequency (ICE2A0565)	100 kHz
Maximum switching frequency (ICE2B0565)	67 kHz
Integrated CoolMOS voltage rating	650 V / 800 V

Frequently asked questions

What is the supply voltage range for the VCC pin?

The VCC pin operates from 8.5 V up to 21 V.
