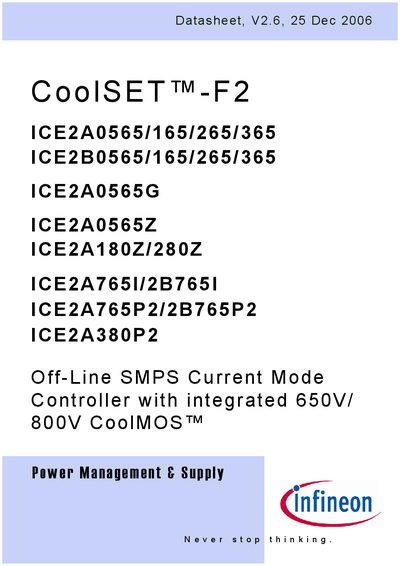

This is the datasheet of ICE2A0565/165/265/365 ICE2B0565/165/265/365 ICE2A0565G ICE2A0565Z ICE2A180Z/280Z ICE2A765I/2B765I ICE2A765P2/2B765P2 ICE2A380P2 Off-Line SMPS Current Mode Controller with integrated 650V/ 800V CoolMOS™ published by Infineon Technologies AG.
The CoolSET‑F2 is an off‑line SMPS current‑mode controller with integrated 650 V/800 V CoolMOS™ devices. It offers low standby power, auto‑restart protection, and a soft‑start function, making it suitable for low‑power standby applications. The datasheet provides detailed electrical characteristics, pin configurations for multiple package types, and typical application circuits.
Key sections include pin configuration tables for DIP‑8, DIP‑7, TO‑220 and DSO‑16/12 packages, a functional block diagram, electrical specifications such as voltage rating, switching frequency and duty cycle, as well as layout recommendations and mechanical dimensions.
