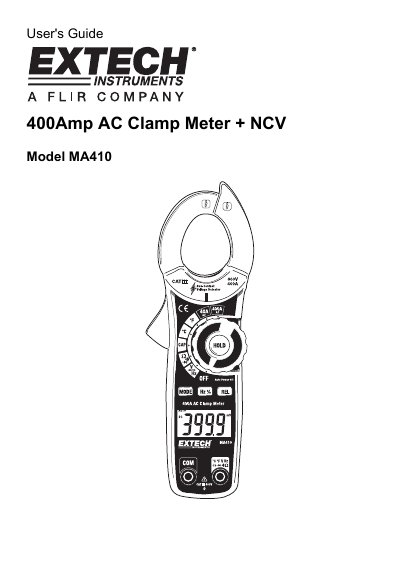

EXTECH 400Amp AC Clamp Meter + NCV Model MA410 user manual
The Extech MA410 is a heavy-duty multimeter designed to measure AC current up to 400A, AC/DC voltage, resistance, capacitance, frequency, and temperature. It features special capabilities including non-contact voltage (NCV) detection and thermocouple temperature measurement.
Read onlineEXTECH MA410 specifications
| Max AC Current | 400A |
|---|---|
| AC Voltage Range | 600 VAC |
| DC Voltage Range | 600 VDC |
| Resistance Range | 40.00M Ω |
| Capacitance Range | 100.0µF |
| Temperature Range | -20 to 760°C |
Source: EXTECH 400Amp AC Clamp Meter + NCV Model MA410 user manual
All EXTECH MA410 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I measure AC current?
Rotate the function switch to the 400A position, press the trigger to open the jaw, and fully enclose only one conductor.
From: EXTECH 400Amp AC Clamp Meter + NCV Model MA410 user manual
How do I perform a non-contact voltage test?
Rotate the function switch to any measurement position and place the detector probe tip on the conductor to be tested.
From: EXTECH 400Amp AC Clamp Meter + NCV Model MA410 user manual
What is the jaw size of the MA410?
The MA410 has a 1.2" (30mm) jaw size.
Does the MA410 include a non-contact voltage detector?
Yes, it includes a built-in non-contact voltage detector with an LED alert.
