Extech MO220 Manuals

ManualLib has 6 documents for the Extech MO220: 6 user manuals. Every file can be read online or downloaded as a PDF for free.

User Manual 6

Key facts

Brand
EXTECH
Model
MO220
Industry
Industrial
Documents
6
Languages
ES · EN · ZH
Last added
2023-11-03

Start here

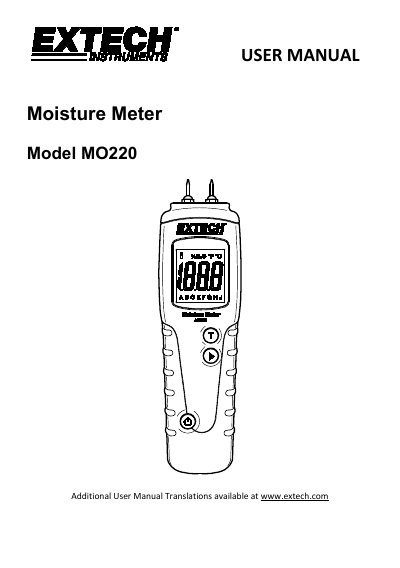

Extech MO220 Moisture Meter User Guide

Extech MO220 Moisture Meter User Guide

User Manual 15 pages · 268 KB · ES

The Extech MO220 is a conductivity moisture meter designed for the timber industry. It has eight calibration scales that allow moisture measurements in 150 wood species.

Measurements can be taken with the integrated needle electrodes or the heavy-duty moisture detector. With the temperature probe, readings are automatically corrected for temperature, and the guide also describes manual temperature correction, accuracy verification, care, battery replacement, and wood calibration tables. This manual is written in Spanish.

Read online

Extech MO220 specifications

Measurement PrincipleElectrical resistance
Wood Measurement Range6 to 44%
Calibration Scales8
Wood Species170
Electrode Length8 mm (0.3 in)
Auto Power OffAfter approximately 15 minutes
Power SourceTwo 1.5V AAA batteries
Operating Temperature0 to 40°C (32 to 104°F)
Dimensions130 x 40 x 25 mm (5.1 x 1.6 x 1.0 in)
Weight100 g (3.5 oz.)

Source: Extech MO220 Wood Moisture Meter User Manual

All Extech MO220 documents by type

Questions answered in these manuals

What batteries does the MO220 use?

It uses two 1.5V AAA batteries.

From: Extech MO220 Wood Moisture Meter User Manual

What is the wood moisture measurement range?

The wood scale range is 6 to 44%.

From: Extech MO220 Wood Moisture Meter User Manual

How many calibration scales does the Extech MO220 have?

It has eight calibration scales, allowing moisture measurements in 150 wood species.

From: Extech MO220 Moisture Meter User Guide

What batteries does the MO220 use?

It uses two 1.5 V AAA batteries.

From: Extech MO220 Moisture Meter User Guide

How many wood calibration scales does the meter have?

The instrument has eight calibration scales, enabling measurements in 150 wood species.

From: Extech MO220 Moisture Meter User Guide

What is the manual correction factor for temperature?

An approximate correction of 0.5% moisture content per 9°F (5°C) should be subtracted for wood above 68°F or added for wood below 68°F.

From: Extech MO220 Moisture Meter User Guide
