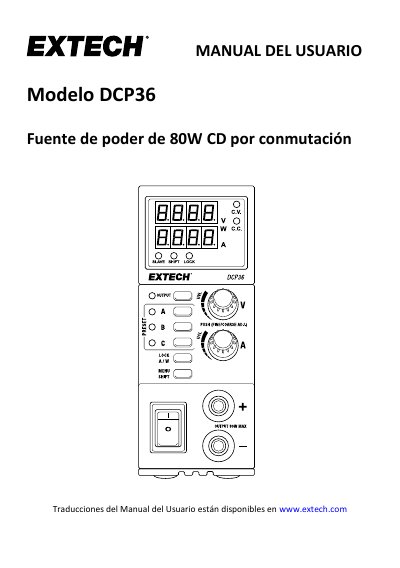

Extech DCP36 80W DC Switching Power Supply User Manual
This document is the user manual for the Extech DCP36, an 80W DC switching power supply designed for laboratory grade applications. It features an automatic range with an output capability of 0.5~36V and 0~5A, offering a wider voltage/current spectrum than conventional power supplies. The unit includes user-settable presets, master/slave capability for up to 30 units in parallel, and adjustable upper limits for voltage and current to protect sensitive devices. This manual is written in Spanish.
Read onlineExtech DCP36 specifications
| Input Power | 100 ~ 240 VAC (50‑60 Hz), 1.2 A |
|---|---|
| Output Voltage Range | 0.5 V – 36 V (auto‑range) |
| Maximum Power | 80 W |
| Power Factor | > 0.9 |
| Output Voltage Accuracy | ±(1.0 % reading + 15 digits) |
| Output Current Accuracy | ±(1.0 % reading + 15 digits) |
| Ripple and Noise | ≤ 35 mV p‑p |
| Dimensions | 330 × 127 × 53.5 mm (13 × 5 × 2 in) |
| Weight | 1.9 kg (4.2 lb) |
All Extech DCP36 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many units can be connected in master/slave mode?
Up to 30 devices can be paralleled, with one unit acting as master and the others as slaves.
What should I do if an over‑voltage error occurs?
Turn off the power, disconnect the load, then turn the power back on. If the error persists, contact Extech support.
What are the output voltage and current limits?
The output voltage ranges from 0.5 to 36V, and the current ranges from 0 to 5A.
From: Extech DCP36 80W DC Switching Power Supply User Manual
How many units can be connected in parallel?
The DCP36 supports Master/Slave capability for up to 30 units in parallel.
From: Extech DCP36 80W DC Switching Power Supply User Manual
