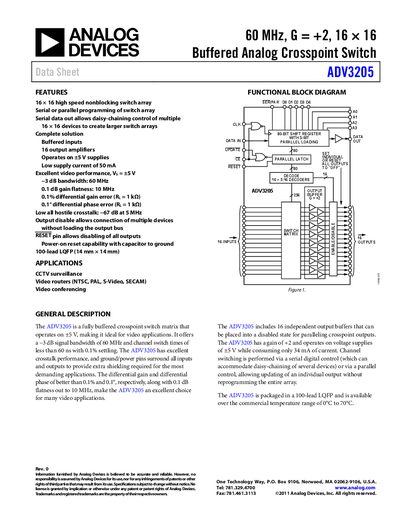

ADV3205 is a 16 × 16 high speed nonblocking switch array, which has serial or parallel programming of switch array, serial data out allows daisy-chaining control of multiple 16 × 16 devices to create larger switch arrays, complete solution, buffered inputs, 16 output amplifiers, operates on ±5 V supplies, supply current of 50 mA, excellent video performance, VS = ±5 V -3 dB bandwidth: 60 MHz 0.1 dB gain flatness: 10 MHz 0.1% differential gain error (RL = 1 kΩ) 0.1° differential phase error (RL = 1 kΩ) low all hostile crosstalk: −67 dB at 5 MHz output disable allows connection of multiple devices without loading the output bus RESET pin allows disabling of all outputs power-on reset capability with capacitor to ground 100-lead LQFP (14 mm × 14 mm) applications: CCTV surveillance, industrial automation, security, automotive, medical equipment, etc.
The ADV3205 is a fully buffered 16 × 16 analog crosspoint switch that operates from a +5 V supply. It offers a –3 dB bandwidth of 60 MHz, excellent gain flatness (0.1 dB up to 10 MHz) and very low crosstalk (‑67 dB at 5 MHz). The device can be programmed either serially or in parallel, and the serial data out pin enables daisy‑chaining of multiple devices to build larger switch matrices.
The part is supplied in a 100‑lead low‑profile quad flat package (LQFP) and is rated for operation from 0 °C to 70 °C. Typical supply current is 45 mA with all outputs enabled, and the device includes built‑in ESD protection. Detailed pin configurations, timing characteristics for both serial and parallel modes, and layout recommendations are provided to aid designers in implementing the ADV3205 in video routing, CCTV, and conferencing systems.
| –3 dB Bandwidth | 60 MHz |
|---|---|
| Crosstalk (All Hostile) | -67 dB at 5 MHz |
| Supply Current (AVcc enabled, no load) | 45 mA typical (45‑50 mA range) |
| Operating Temperature Range | 0 °C to 70 °C |
| Package | 100‑lead LQFP |
The device has a –3 dB bandwidth of 60 MHz.
Typical supply current is 45 mA (45‑50 mA range) with AVcc outputs enabled and no load.
All‑hostile crosstalk is –67 dB at 5 MHz.
