Key facts
- Brand
- Analog Devices
- Model
- ADUM2400
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-11
Start here

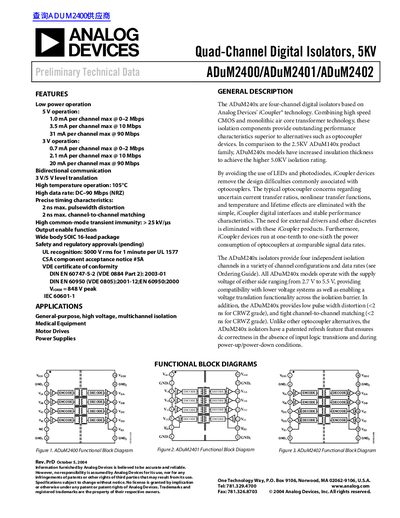

ANALOG DEVICES ADuM2400/ADuM2401/ADuM2402 Quad-Channel Digital Isolators 5KV handbook
The ADuM240x family consists of four-channel digital isolators based on Analog Devices' Coupler technology. These devices combine high-speed CMOS and monolithic air core transformer technology to provide outstanding performance characteristics, including high common-mode transient immunity and precise timing. They are designed for general-purpose, high-voltage, multichannel isolation applications in medical equipment, motor drives, and power supplies.
Read onlineAnalog Devices ADUM2400 specifications
| Isolation Voltage | 5000 V rms |
|---|---|
| Supply Voltage | 2.7 V to 5.5 V |
| Maximum Data Rate | 90 Mbps |
| Pulsewidth Distortion | 2 ns max |
| Channel-to-Channel Matching | 2 ns max |
| Common-Mode Transient Immunity | > 25 kV/ps |
| Operating Temperature | 105°C |
Source: ANALOG DEVICES ADuM2400/ADuM2401/ADuM2402 Quad-Channel Digital Isolators 5KV handbook
All Analog Devices ADUM2400 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the isolation rating of the ADuM240x series?
The ADuM240x models have an increased insulation thickness to achieve a higher 5.0KV isolation rating.
From: ANALOG DEVICES ADuM2400/ADuM2401/ADuM2402 Quad-Channel Digital Isolators 5KV handbook
What technology is used in the ADuM240x isolators?
They are based on Analog Devices' Coupler technology, combining high-speed CMOS and monolithic air core transformer technology.
From: ANALOG DEVICES ADuM2400/ADuM2401/ADuM2402 Quad-Channel Digital Isolators 5KV handbook
What is the maximum data rate for the ADuM2400 CRWZ grade?
The ADuM2400 CRWZ grade supports a maximum data rate of 90 Mbps.
From: Analog Devices ADuM2400/ADuM2401/ADuM2402 Product Handbook
What supply voltage range do the ADuM240x isolators operate over?
They operate with supply voltages ranging from 2.7 V to 5.5 V on either side of the isolation barrier.
From: Analog Devices ADuM2400/ADuM2401/ADuM2402 Product Handbook
