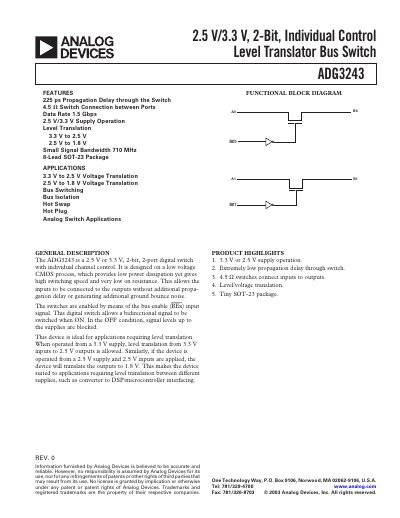

Analog Devices ADG3243 Level Translator Bus Switch Datasheet
The ADG3243 is a low‑voltage CMOS 2‑bit, 2‑port digital switch that provides individual channel control. It operates from a 2.5 V or 3.3 V supply and offers bidirectional signal switching when ON, while blocking signals up to the supply voltage when OFF. The device features extremely low propagation delay, low on‑resistance, and a tiny 8‑lead SOT‑23 package.
Typical applications include voltage level translation (3.3 V↔2.5 V, 2.5 V↔1.8 V), bus isolation, hot‑swap and hot‑plug protection, and general bus switching in mixed‑voltage systems. The ADG3243’s fast switching speed and low capacitance make it suitable for high‑speed data paths up to 1.5 Gbps.
Analog Devices ADG3243 specifications
| Supply Voltage Range | 2.3 V to 3.6 V |
|---|---|
| Propagation Delay | 225 ps |
| On‑Resistance (typical, VCC=3 V) | 4.5 Ω |
| Input Leakage Current | ±0.01 µA |
| Package | 8‑Lead SOT‑23 |
Source: Analog Devices ADG3243 Level Translator Bus Switch Datasheet
All Analog Devices ADG3243 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltages does the ADG3243 operate from?
It can be powered from either a 2.5 V or a 3.3 V supply.
From: Analog Devices ADG3243 Level Translator Bus Switch Datasheet
What is the typical propagation delay through the switch?
The typical propagation delay is 225 ps.
From: Analog Devices ADG3243 Level Translator Bus Switch Datasheet
In which package is the ADG3243 offered?
It is offered in an 8‑lead SOT‑23 package.
From: Analog Devices ADG3243 Level Translator Bus Switch Datasheet
Is the ADG3243 suitable for hot‑swap or hot‑plug applications?
Yes, the ADG3243 is designed for hot‑swap and hot‑plug isolation.
From: Analog Devices ADG3243 Level Translator Bus Switch Datasheet
