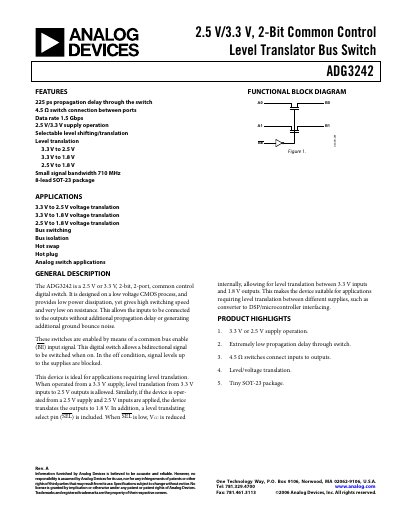

Analog Devices ADG3242 Datasheet Rev A
The ADG3242 is a low‑voltage CMOS digital switch that provides bidirectional level translation between 3.3 V, 2.5 V and 1.8 V domains. It features a common bus enable input, selectable level‑shifting, and a tiny 8‑lead SOT‑23 package.
Typical applications include voltage translation, bus isolation, hot‑plug and hot‑swap protection, and analog switching in video graphics or back‑plane bus architectures. Key performance figures are a 225 ps propagation delay, 4.5 Ω on‑resistance, and a maximum data rate of 1.5 Gbps.
Analog Devices ADG3242 specifications
| Propagation delay | 225 ps |
|---|---|
| On‑resistance (typical) | 4.5 Ω |
| Maximum data rate | 1.5 Gbps |
| Supply voltage (VCC) range | 2.3 V to 3.6 V |
All Analog Devices ADG3242 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the propagation delay of the ADG3242?
The device has a propagation delay of 225 ps through the switch.
What supply voltage range does the ADG3242 support?
It operates from a VCC of 2.3 V to 3.6 V.
What supply voltage range does the ADG3242 support?
The device operates from 2.3 V to 3.6 V.
What is the typical propagation delay of the ADG3242?
The typical propagation delay is 225 ps.
