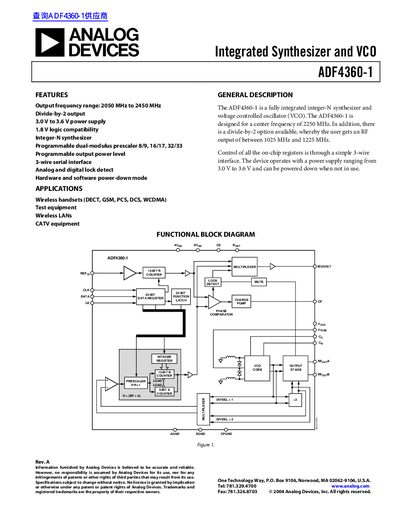

Analog Devices ADF4360-1 Integrated Synthesizer and VCO Datasheet
The ADF4360-1 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO) designed for a center frequency of 2250 MHz. It features an output frequency range from 2050 MHz to 2450 MHz, with an optional divide-by-2 output providing frequencies between 1025 MHz and 1225 MHz. The device operates with a power supply ranging from 3.0 V to 3.6 V and includes a programmable dual-modulus prescaler.
Read onlineAnalog Devices ADF4360-1 specifications
| Output Frequency Range | 2050 MHz to 2450 MHz |
|---|---|
| Logic Compatibility | 1.8 V |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices ADF4360-1 Integrated Synthesizer and VCO Datasheet
