The ADF4360-1 is a fully integrated integer-N synthesizer and voltage-controlled oscillator (VCO).
The ADF4360-1 is a fully integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) designed for a center frequency of 2250 MHz, with an optional divide‑by‑2 output that yields 1025 MHz to 1225 MHz. Control of all on‑chip registers is provided through a simple 3‑wire serial interface, and the device operates from a 3.0 V to 3.6 V supply.

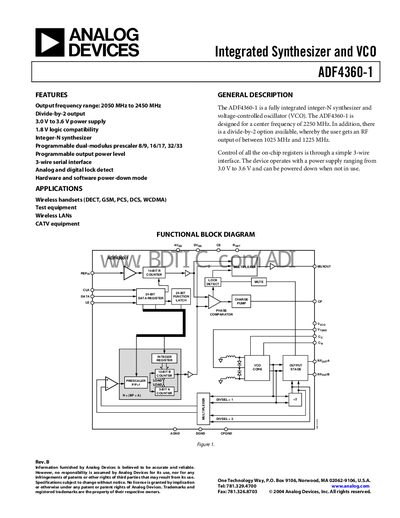

The datasheet includes detailed specifications, absolute maximum ratings, pin configuration and function descriptions, timing diagrams, typical performance characteristics, application examples, PCB design guidelines, and ordering information for the ADF4360-1 family.
| Output frequency range | 2050 MHz to 2450 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Phase detector maximum frequency | 8 MHz max |
| Charge pump high‑value current | 25 mA typ |
| VCO phase‑noise (100 kHz offset) | -110 dBc/Hz typ |
| Output power range | -13 dBm to -6 dBm typ |
| Operating temperature range | -40 °C to +85 °C |
The device covers 2050 MHz to 2450 MHz, with a divide‑by‑2 option that provides 1025 MHz to 1225 MHz.
It operates from a 3.0 V to 3.6 V analog power supply.
All registers are programmed via a simple 3‑wire serial interface.
The device is rated for -40 °C to +85 °C.
