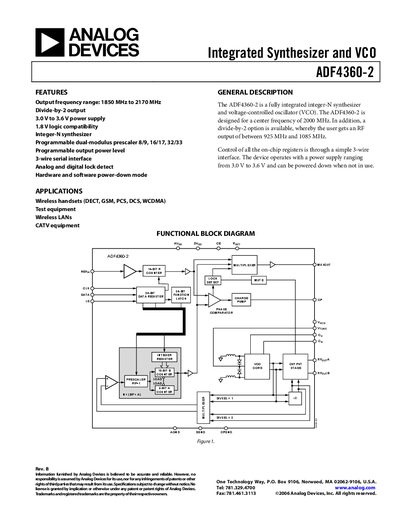

Analog Devices ADF4360-2 Datasheet
Datasheet 24 pages · 428 KB · EN
The ADF4360-2 is a fully integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) covering 1850 MHz to 2170 MHz, with an optional divide‑by‑2 output of 925 MHz to 1085 MHz. It operates from a 3.0 V to 3.6 V supply, supports 1.8 V logic, and is programmed via a simple 3‑wire serial interface.
The document provides detailed specifications, pin configuration, timing diagrams, absolute maximum ratings, typical performance curves, and an ordering guide for the 24‑lead LFCSP package variants.
Analog Devices ADF4360-2 specifications
| Output frequency range | 1850 MHz to 2170 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Logic compatibility | 1.8 V |
| Phase detector maximum frequency | 8 MHz |
| VCO phase‑noise @100 kHz offset | -110 dBc/Hz (typ) |
| Operating temperature range | -40 °C to +85 °C |
| Absolute maximum rating AVop to GND | -0.3 V to +3.9 V |
All Analog Devices ADF4360-2 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output frequency range of the ADF4360-2?
The device covers 1850 MHz to 2170 MHz, and with the divide‑by‑2 option it can output 925 MHz to 1085 MHz.
What power supply voltage does the ADF4360-2 require?
It operates from a 3.0 V to 3.6 V analog and digital supply.
