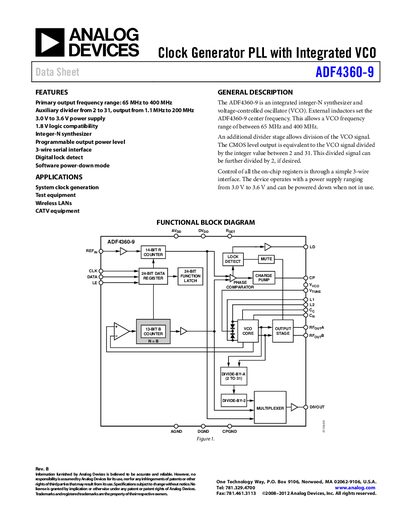

Analog Devices ADF4360-9 Clock Generator PLL Datasheet
The ADF4360-9 is a clock‑generator PLL with an integrated voltage‑controlled oscillator. It provides a primary output frequency range of 65 MHz to 400 MHz, an auxiliary divider from 2 to 31, and a 3‑wire serial interface. The device operates from a 3.0 V to 3.6 V supply and supports 1.8 V logic levels.
Typical applications include system clock generation, test equipment, wireless LANs, and CATV equipment. The datasheet details functional block diagrams, pin configurations, timing characteristics, absolute maximum ratings, and recommended output‑matching circuits for optimal performance.
Analog Devices ADF4360-9 specifications
| Primary output frequency range | 65 MHz to 400 MHz |
|---|---|
| Power supply voltage | 3.0 V to 3.6 V |
| Input high voltage (Vint) | 1.5 V min |
| Operating temperature range | -40 °C to +85 °C |
Source: Analog Devices ADF4360-9 Clock Generator PLL Datasheet
