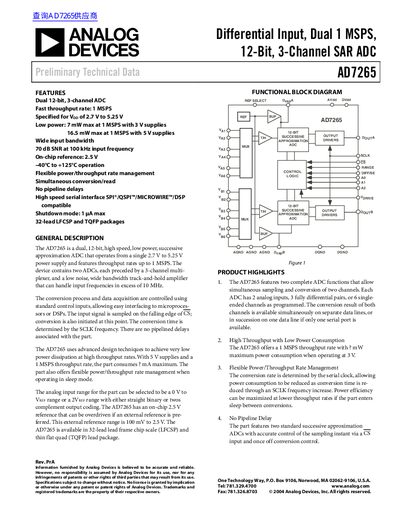

Analog Devices AD7265 Datasheet
The AD7265 is a differential input, dual 12-bit, high speed, low power successive approximation (SAR) analog-to-digital converter. It operates from a single supply of 2.7 V to 5.25 V and features throughput rates up to 1 MSPS. The device contains two ADCs, each preceded by a 3-channel multiplexer, allowing for simultaneous sampling and conversion.
Read onlineAnalog Devices AD7265 specifications
| Resolution | 12 Bits |
|---|---|
| Throughput Rate | 1 MSPS max |
| Signal-to-Noise + Distortion Ratio (SINAD) | 70 dB min |
| Total Harmonic Distortion (THD) | -75 dB max |
| Power Supply Range | 2.7 V to 5.25 V |
| Operating Temperature Range | -40°C to +125°C |
Source: Analog Devices AD7265 Datasheet
All Analog Devices AD7265 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power consumption at 1 MSPS with a 3 V supply?
The maximum power consumption is 7 mW.
What packages are available for the AD7265?
The device is available in 32-lead LFCSP and TQFP packages.
What is the maximum sampling rate of the AD7265?
The AD7265 can sample at up to 1 MSPS.
How much power does the AD7265 use at 3 V supply?
It consumes 7 mW at 1 MSPS when powered from 3 V.
What is the maximum throughput rate of the AD7265?
The AD7265 can operate at up to 1 MSPS maximum throughput.
What temperature range can the AD7265 operate in?
The device is rated for operation from –40 °C to +125 °C.
