The AD7265 is a differential/single-ended input, dual 1 MSPS, 12-bit, 3-channel SAR ADC. It features a 12-bit successive approximation ADC, 1 MSPS throughput rate, power consumption of 7 mW to 17 mW, pin-configurable analog inputs, and 70 dB SINAD.
The AD7265 is a dual, 12‑bit, 3‑channel successive‑approximation ADC that operates from a single 2.7 V to 5.25 V supply and provides up to 1 MSPS throughput. It includes two ADCs each preceded by a 3‑channel multiplexer and a low‑noise track‑and‑hold amplifier capable of handling input frequencies above 30 MHz.

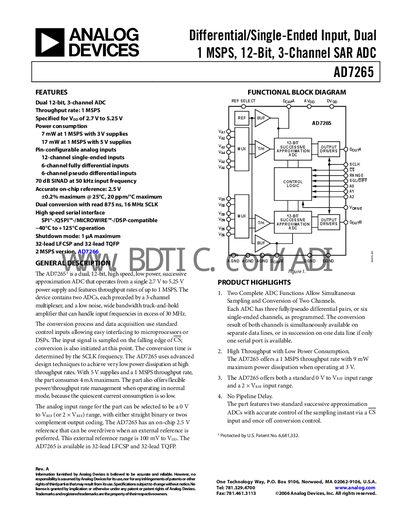

The datasheet provides functional block diagrams, pin‑out tables, timing specifications, absolute maximum ratings, and detailed electrical characteristics such as resolution, power consumption, reference options, and package dimensions. Ordering information for LFCSP and TQFP packages is also included.
| Resolution | 12 bits |
|---|---|
| Throughput Rate | 1 MSPS max |
| Power Dissipation (Normal Mode) | 21 mW max at 5.25 V |
| Power Dissipation (Partial Power‑Down) | 2.625 mW max |
| Power Dissipation (Full Power‑Down) | 5.25 pW max |
| Operating Temperature Range | –40 °C to +125 °C |
| Reference Output Voltage | 2.5 V ±0.2 % @ 25 °C |
| Input Range | 0 V to Vref or 2 × Vref |
| Digital Supply Voltage | 2.7 V to 5.25 V |
The AD7265 can convert at up to 1 MSPS (mega‑samples per second).
In normal operational mode it dissipates up to 21 mW when powered at 5.25 V.
It is rated for operation from –40 °C up to +125 °C.
