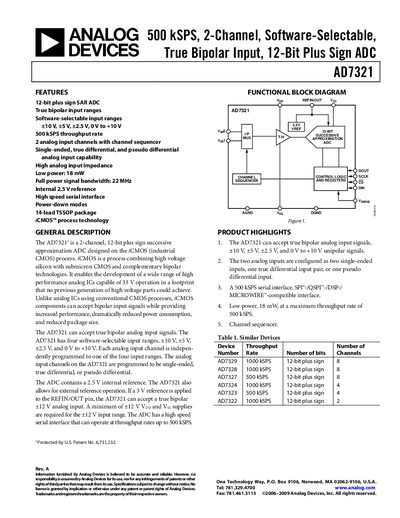

Analog Devices AD7321 Datasheet
The AD7321 is a 2‑channel, 12‑bit plus sign successive‑approximation ADC built on Analog Devices' iCMOS process. It accepts true bipolar analog inputs and offers four software‑selectable input ranges (+10 V, +5 V, +2.5 V, and 0‑10 V unipolar). The device features a high‑speed serial interface capable of up to 500 kSPS throughput and operates with low power consumption (18 mW in normal mode).
The ADC is supplied in a 14‑lead TSSOP package and includes an internal 2.5 V reference (or can use an external reference). Detailed specifications cover dynamic performance, conversion timing, absolute maximum ratings, and recommended layout and grounding practices for optimal operation.
Analog Devices AD7321 specifications
| Throughput rate | 500 kSPS |
|---|---|
| Power consumption (Normal Mode) | 18 mW |
| Full‑power bandwidth | 22 MHz |
| Input voltage ranges | +10 V, +5 V, +2.5 V, 0‑10 V |
| Resolution | 12‑bit plus sign (13‑bit total) |
| Package | 14‑lead TSSOP |
Source: Analog Devices AD7321 Datasheet
All Analog Devices AD7321 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7321?
The AD7321 can sample at up to 500 kSPS.
Which input voltage ranges can be selected on the AD7321?
Four ranges are selectable: +10 V, +5 V, +2.5 V, and 0‑10 V unipolar.
What is the maximum sampling rate of the AD7321?
The AD7321 can operate at a throughput rate of up to 500 kSPS.
How many analog input channels does the AD7321 provide?
The device has two analog input channels with a channel sequencer.
What is the maximum sampling rate of the AD7321?
The AD7321 can operate at a maximum throughput rate of 500 kSPS.
How many analog input channels does the AD7321 have?
It provides two analog input channels with a channel sequencer.
