Start here

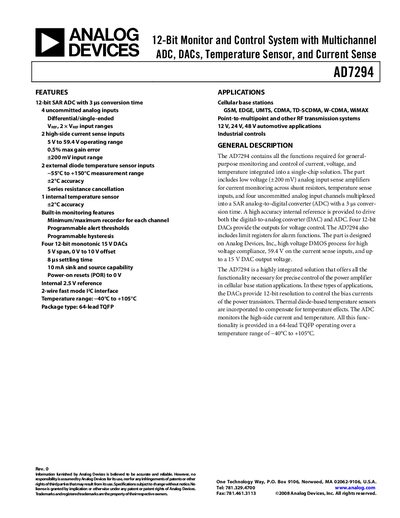

Analog Devices AD7294 Handbook
This handbook describes the AD7294 12‑bit SAR ADC with four integrated 12‑bit DACs, high‑side current‑sense inputs, and temperature‑sensor capabilities. It includes functional block diagrams, detailed specifications, timing characteristics, and recommended PCB layout guidelines.
The document also lists application areas such as cellular base stations, automotive power supplies, and industrial controls, and provides register settings, command protocols, and ordering information for the 64‑lead TQFP package.
Analog Devices AD7294 specifications
| Resolution | 12 Bits |
|---|---|
| Operating Voltage Range | 5 V to 59.4 V |
| Temperature Range | –40 °C to +105 °C |
| Package Type | 64‑lead TQFP |
| Number of DACs | Four 12‑bit DACs |
| Uncommitted Analog Inputs | 4 channels |
| High‑Side Current Sense Inputs | 2 inputs |
Source: Analog Devices AD7294 Handbook
All Analog Devices AD7294 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD7294?
The device operates from –40 °C to +105 °C.
How many DAC channels does the AD7294 provide?
It includes four 12‑bit DAC channels.
What is the resolution of the AD7294 ADC?
The AD7294 ADC provides a 12‑bit resolution.
What temperature range can the AD7294 operate in?
It operates from –40 °C up to +105 °C.
