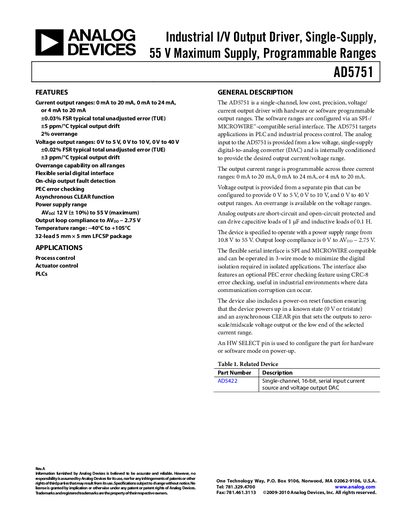

Analog Devices AD5751 Industrial I/V Output Driver Datasheet
The AD5751 is a low-cost, high-precision voltage and current output driver designed for PLCs and industrial process control applications. It features hardware or software programmable output ranges via an SPI/MICROWIRE-compatible serial interface. The device provides selectable current output ranges of 0 mA to 20 mA, 0 mA to 24 mA, or 4 mA to 20 mA, as well as voltage output ranges of 0 V to 5 V, 0 V to 10 V, and 0 V to 40 V.
Read onlineAnalog Devices AD5751 specifications
| Current Output Ranges | 0 mA to 20 mA, 0 mA to 24 mA, or 4 mA to 20 mA |
|---|---|
| Voltage Output Ranges | 0 V to 5 V, 0 V to 10 V, 0 V to 40 V |
| Total Unadjusted Error (TUE) | ±0.03% FSR typical |
| Output Drift | ±5 ppm/°C typical |
| Power Supply Range (AVDD) | 10.8 V to 55 V maximum |
| Temperature Range | -40°C to +105°C |
| Package Type | 32-lead 5 mm × 5 mm LFCSP |
Source: Analog Devices AD5751 Industrial I/V Output Driver Datasheet
All Analog Devices AD5751 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available current output ranges?
The device supports three programmable current ranges: 0 mA to 20 mA, 0 mA to 24 mA, and 4 mA to 20 mA.
From: Analog Devices AD5751 Industrial I/V Output Driver Datasheet
Is the AD5751 compatible with SPI?
Yes, it uses an SPI-/MICROWIRE-compatible serial interface for software range configuration.
From: Analog Devices AD5751 Industrial I/V Output Driver Datasheet
What is the power supply voltage range for the AD5751?
AVDD can be supplied from 12 V (±10 %) up to a maximum of 55 V.
How many current output ranges does the AD5751 support?
It supports three current ranges: 0‑20 mA, 0‑24 mA, and 4‑20 mA.
What serial interface does the AD5751 use?
The AD5751 uses an SPI/Microwire‑compatible 3‑wire serial interface.
How does the AD5751 handle over‑range conditions?
Voltage ranges provide a 10 % over‑range, and the current ranges have nominal over‑ranges as specified in the data sheet.
