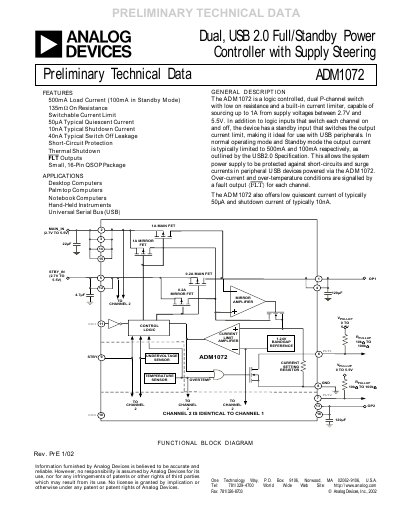

Analog Devices ADM1072 Dual USB Power Controller Datasheet
The ADM1072 is a dual, logic-controlled P-channel switch designed to source up to 1A from supply voltages between 2.7V and 5.5V. It features low on-resistance (135mΩ) and includes built-in current limiting with selectable limits for Full Power Mode (500mA) and Standby Mode (100mA), compliant with USB 2.0 specifications.
The device incorporates protection mechanisms including short-circuit protection, thermal shutdown at +150°C, and undervoltage lockout between 2.0V and 2.6V. It is available in a small 16-pin QSOP package and is intended for use with desktop computers, notebook computers, palmtop computers, and hand-held instruments.
Analog Devices ADM1072 specifications
| Load Current (Full Power Mode) | 500mA |
|---|---|
| Load Current (Standby Mode) | 100mA |
| Operating Voltage Range | +2.7V to +5.5V |
| On Resistance | 135mΩ |
| Quiescent Current (Typical) | 50µA |
| Shutdown Current (Typical) | 10nA |
| Package Type | 16-Pin QSOP |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
Source: Analog Devices ADM1072 Dual USB Power Controller Datasheet
All Analog Devices ADM1072 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the current limit in standby mode?
The device limits output current to 100mA in Standby Mode, as outlined by the USB2.0 Specification.
From: Analog Devices ADM1072 Dual USB Power Controller Datasheet
What happens if the die temperature exceeds +150°C?
The thermal shutdown circuit activates, turning off both channels until the temperature falls below +140°C.
From: Analog Devices ADM1072 Dual USB Power Controller Datasheet
What is the maximum current in full power mode?
The device is rated to provide 500mA continuously in full power mode.
From: Analog Devices ADM1072 Dual USB Power Controller Preliminary Technical Data
What happens when the die temperature exceeds +150°C?
The thermal shutdown operates, turning off both channels.
From: Analog Devices ADM1072 Dual USB Power Controller Preliminary Technical Data
