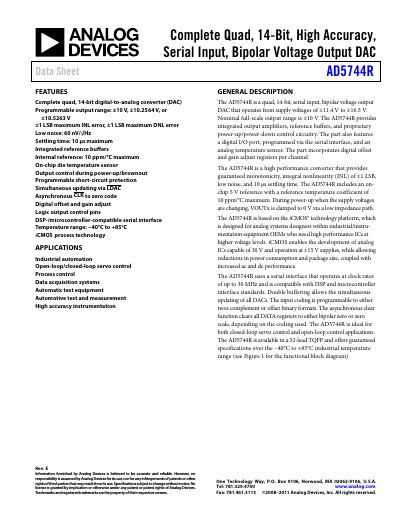

Analog Devices AD5744R Quad DAC Data Sheet
The AD5744R is a four‑channel, 14‑bit digital‑to‑analog converter designed for industrial automation, servo control, data acquisition and test equipment. It operates from ±11.4 V to ±16.5 V supplies and provides programmable output ranges of ±10 V, ±10.2564 V or ±10.5263 V.
Key features include ±1 LSB INL/DNL, 60 nV/√Hz noise, 10 µs maximum settling time, integrated reference buffers, digital offset/gain adjustment, and a DSP‑compatible serial interface. The device is supplied in a 32‑lead TQFP package and is rated for –40 °C to +85 °C operation.
Analog Devices AD5744R specifications
| Resolution | 14 Bits |
|---|---|
| Integral Nonlinearity (INL) | ±1 LSB |
| Differential Nonlinearity (DNL) | ±1 LSB |
| Settling Time | 10 µs max |
| Output Noise | 60 nV/√Hz |
| Supply Voltage (AVDD) | 11.4 V to 16.5 V |
All Analog Devices AD5744R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output noise level of the AD5744R?
The device has a low noise specification of 60 nV/√Hz.
What temperature range can the AD5744R operate in?
It is rated for an industrial temperature range of –40 °C to +85 °C.
What is the settling time of the AD5744R?
The AD5744R settles to within 1 LSB in 10 µs maximum.
What supply voltage range does the AD5744R require?
It operates from +11.4 V to +16.5 V (AVpp) and –11.4 V to –16.5 V (AVss).
What is the supply voltage range for the AD5744R?
The device operates from +11.4 V to +16.5 V on the positive supply and –11.4 V to –16.5 V on the negative supply.
What resolution does the AD5744R provide?
It provides a 14‑bit resolution.
