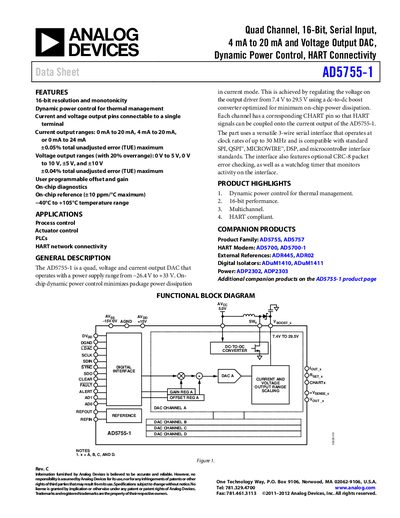

Analog Devices AD5755-1 Product Handbook
The AD5755-1 is a quad‑channel, 16‑bit DAC that provides both voltage and current outputs. It includes dynamic power control for thermal management, HART network connectivity, and a versatile 3‑wire serial interface compatible with SPI, QSPI, MICROWIRE, DSP and microcontroller standards.
The handbook provides full electrical specifications, functional block diagrams, pin descriptions, performance characteristics, and recommended application circuits. It also lists companion products and outlines power‑supply requirements, reference options, and programming sequences for configuring output ranges and offsets.
Analog Devices AD5755-1 specifications
| Resolution | 16 Bits |
|---|---|
| Total Unadjusted Error (Voltage Output) | -0.04 % FSR to +0.04 % FSR |
| Output Current Ranges | 0‑24 mA, 0‑20 mA, 4‑20 mA |
| Supply Voltage Range | AVoo 9 V to 33 V, AVss –26.4 V to –10.8 V or 0 V |
| Operating Temperature Range | –40 °C to +105 °C |
All Analog Devices AD5755-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5755-1?
The AD5755-1 provides 16‑bit resolution.
What output current ranges does the AD5755-1 support?
It supports 0‑24 mA, 0‑20 mA, and 4‑20 mA output current ranges.
What is the resolution of the AD5755-1?
The AD5755-1 provides 16‑bit resolution.
What voltage output ranges are available?
It supports 0‑5 V, 0‑10 V, ±5 V, and ±10 V output ranges.
