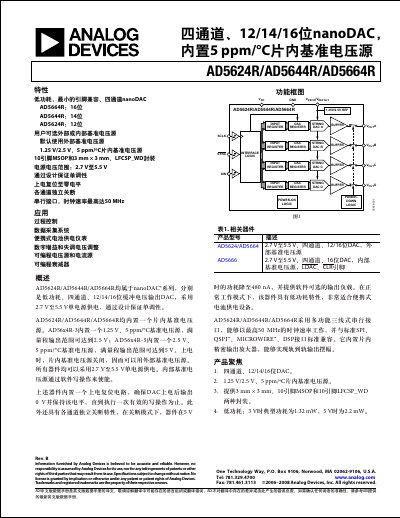

Analog Devices AD5624R/AD5644R/AD5664R Data Sheet
The AD5624R/AD5644R/AD5664R are low-power, four-channel, 12/14/16-bit buffered voltage-output DACs belonging to the nanoDAC® series. They operate from a single 2.7 V to 5.5 V supply and feature guaranteed monotonicity. The devices include an internal reference voltage source (1.25 V or 2.5 V) which can be enabled via software, though external references are also supported.
Read onlineAnalog Devices AD5644R specifications
| Resolution (AD5664R) | 16 Bits |
|---|---|
| Resolution (AD5644R) | 14 Bits |
| Resolution (AD5624R) | 12 Bits |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Typical Power Consumption | 1.32 mW at 3 V, 2.25 mW at 5 V |
| Output Voltage Range | 0 V to Vop |
| Serial Interface Speed | Up to 50 MHz |
Source: Analog Devices AD5624R/AD5644R/AD5664R NanoDACs Datasheet
All Analog Devices AD5644R documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock rate for the serial interface?
The serial interface can operate at a maximum clock rate of 50 MHz.
What is the power supply voltage range for these devices?
The devices operate with a single power supply voltage ranging from 2.7 V to 5.5 V.
What is the operating supply voltage range for the AD5624R/AD5644R/AD5664R devices?
The devices operate from a single 2.7 V to 5.5 V power supply.
From: Analog Devices AD5624R/AD5644R/AD5664R NanoDACs Datasheet
