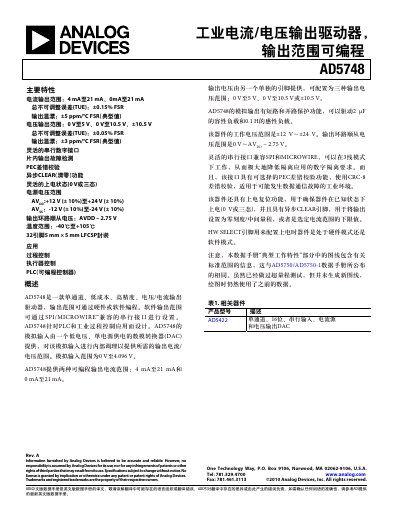

Analog Devices AD5748 Voltage/Current Output Driver Datasheet
The AD5748 is a low‑cost, high‑precision voltage/current output driver designed for industrial process control and PLC applications. It offers programmable output ranges that can be set via hardware or software using a SPI/MICROWIRE‑compatible serial interface.
The device includes short‑circuit and open‑circuit protection, PEC error checking, asynchronous CLEAR, and flexible power‑on states. It operates from ±12 V to ±24 V supplies and is available in a 32‑pin LFCSP package. This manual is written in Chinese.
Analog Devices AD5748 specifications
| Supply voltage range | AVDD +12 V to +24 V, AVSS –12 V to –24 V |
|---|---|
| Output current range | 4 mA–21 mA and 0 mA–21 mA |
| Operating temperature range | -40 °C to +105 °C |
| Resolution | 16‑bit DAC |
Source: Analog Devices AD5748 Voltage/Current Output Driver Datasheet
All Analog Devices AD5748 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range is required for the AD5748?
The device operates from AVDD +12 V to +24 V and AVSS –12 V to –24 V.
From: Analog Devices AD5748 Voltage/Current Output Driver Datasheet
How many pins does the AD5748 package have?
It is offered in a 32‑pin LFCSP package measuring 5 mm × 5 mm.
From: Analog Devices AD5748 Voltage/Current Output Driver Datasheet
What current output ranges does the AD5748 support?
It supports two programmable current ranges: 0 mA to 21 mA and 4 mA to 21 mA.
From: Analog Devices AD5748 Industrial Current/Voltage Output Driver Datasheet
What voltage output ranges are available on the AD5748?
The device can output 0 V‑5 V, 0 V‑10.5 V, or ±10.5 V, depending on the selected range.
From: Analog Devices AD5748 Industrial Current/Voltage Output Driver Datasheet
