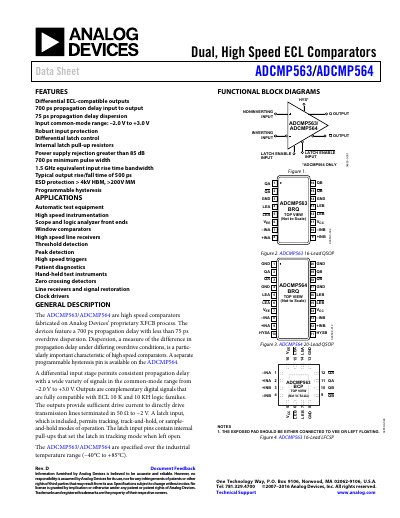

Analog Devices ADCMP563/ADCMP564 High Speed ECL Comparators Data Sheet
The ADCMP563 and ADCMP564 are high-speed comparators fabricated on Analog Devices' proprietary XFCB process. They feature a 700 ps propagation delay with less than 75 ps overdrive dispersion and are compatible with ECL 10 K and 10 KH logic families. The devices include a differential input stage and a programmable hysteresis pin on the ADCMP564 model.
Read onlineAnalog Devices ADCMP563 specifications
| Propagation Delay | 700 ps |
|---|---|
| Overdrive Dispersion | 75 ps |
| Input Common-Mode Range | -2.0 V to +3.0 V |
| Power Supply Rejection Ratio | > 85 dB |
| Equivalent Input Rise Time Bandwidth | 1.5 GHz |
| Operating Temperature Range | -40°C to +85°C |
| Output Rise Time | 530 ps |
| Output Fall Time | 450 ps |
Source: Analog Devices ADCMP563/ADCMP564 High Speed ECL Comparators Data Sheet
All Analog Devices ADCMP563 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the propagation delay of the ADCMP563/ADCMP564?
The devices feature a 700 ps propagation delay with less than 75 ps overdrive dispersion.
From: Analog Devices ADCMP563/ADCMP564 High Speed ECL Comparators Data Sheet
Is the ADCMP564 compatible with ECL logic families?
Yes, the outputs are fully compatible with ECL 10 K and 10 KH logic families.
From: Analog Devices ADCMP563/ADCMP564 High Speed ECL Comparators Data Sheet
Is hysteresis programmable on these comparators?
Yes, the ADCMP564 includes a separate programmable hysteresis pin.
From: Analog Devices ADCMP563/ADCMP564 Dual High Speed ECL Comparators Datasheet
What is the input common-mode voltage range?
The input common-mode range is from -2.0 V to +3.0 V.
From: Analog Devices ADCMP563/ADCMP564 Dual High Speed ECL Comparators Datasheet
What is the typical propagation delay of the ADCMP563/564?
The typical propagation delay is 700 ps with a dispersion of less than 75 ps.
What temperature range can the comparators operate in?
They are specified for operation from –40 °C to +85 °C.
