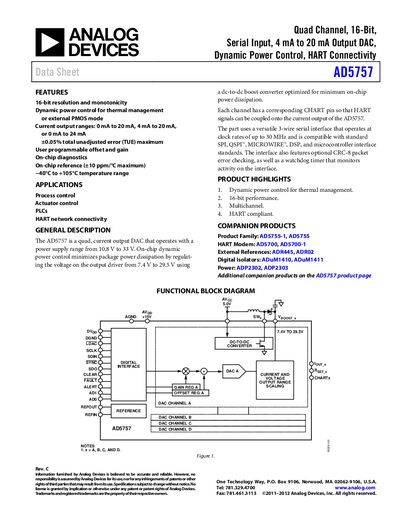

Analog Devices AD5757 Datasheet
The AD5757 is a quad, 16‑bit current‑output DAC that operates from a 10.8 V to 33 V supply. It features dynamic power control to minimize dissipation, on‑chip reference, diagnostics, and a versatile 3‑wire serial interface compatible with SPI, QSPI, Microwire, DSP and microcontroller standards. Each channel includes a CHART pin for HART signal coupling.
Designed for process control, actuator control, PLCs and HART‑networked industrial applications, the device offers selectable output ranges (0‑24 mA, 0‑20 mA, 4‑20 mA), low offset and gain errors, and programmable offset and gain. Detailed specifications, timing diagrams, and programming sequences are provided for integration into embedded systems.
Analog Devices AD5757 specifications
| Resolution | 16 Bits |
|---|---|
| Output Current Range | 0‑24 mA (also 0‑20 mA or 4‑20 mA options) |
| Gain Error | -0.05 % FSR (typical) |
| Offset Error | -0.05 % FSR (typical) |
| Supply Voltage (AVoo) | 9 V to 33 V |
| Power Dissipation | 155 mW (typical) |
| Operating Temperature Range | ‑40 °C to +105 °C |
Source: Analog Devices AD5757 Datasheet
All Analog Devices AD5757 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output current range of the AD5757?
The device can output 0‑24 mA, with optional 0‑20 mA or 4‑20 mA ranges.
What serial interface does the AD5757 use?
It uses a 3‑wire serial interface compatible with SPI, QSPI, Microwire, DSP and microcontroller standards.
What is the output current range of the AD5757?
The AD5757 can source 0 mA to 24 mA, with selectable sub‑ranges of 0‑20 mA and 4‑20 mA.
Does the AD5757 support HART communication?
Yes, each channel has a CHART pin that allows HART signals to be coupled onto the current output.
