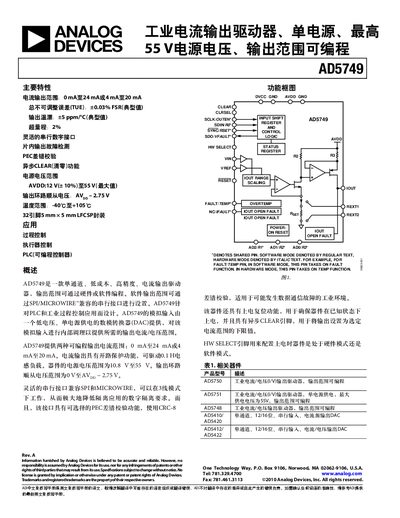

Analog Devices AD5749 Datasheet
The AD5749 is a single‑channel industrial current/voltage output driver designed for process‑control and actuator‑control applications. It offers programmable output ranges of 0 mA‑24 mA or 4 mA‑20 mA, selectable via hardware or software, and includes open‑circuit protection for inductive loads.
The device operates from a single supply (AVDD 12 V ±10 % to 55 V) and provides a loop‑compliance voltage of AVDD‑2.75 V. Its serial interface is compatible with SPI and Microwire, supports up to 50 MHz clock rates, and includes optional PEC CRC‑8 error checking for robust communication in industrial environments. This manual is written in Chinese.
Analog Devices AD5749 specifications
| Output current range | 0 mA–24 mA or 4 mA–20 mA |
|---|---|
| Supply voltage (AVDD) | 12 V ±10 % to 55 V |
| Operating temperature range | -40 °C to +105 °C |
| Loop compliance voltage | AVDD – 2.75 V |
| Load resistance (RLOAD) | 300 Ω |
Source: Analog Devices AD5749 Datasheet
All Analog Devices AD5749 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the programmable output current range of the AD5749?
The AD5749 can be programmed for either 0 mA to 24 mA or 4 mA to 20 mA output current.
What supply voltage does the AD5749 require?
It operates from a single supply voltage (AVDD) of 12 V ±10 % up to 55 V.
What is the power supply range for the AD5749?
The device operates from 12 V (+10 %) up to 55 V.
What is the operating temperature range?
The AD5749 is rated from –40 °C to +105 °C.
