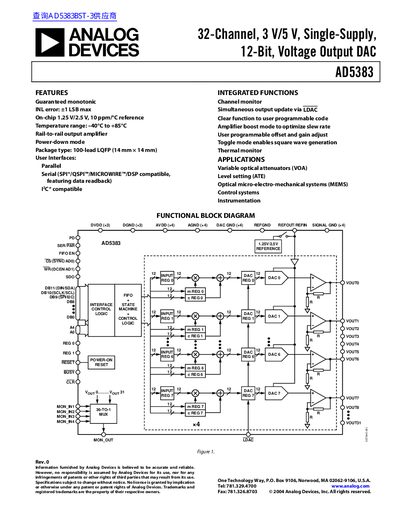

Analog Devices AD5383 32-Channel 12-Bit Voltage Output DAC Datasheet
The AD5383 is a high-performance digital-to-analog converter (DAC) designed for applications requiring multiple channels in a compact package. It features 32 independent channels, each equipped with an on-chip output amplifier capable of rail-to-rail operation. The device includes a programmable internal reference available at 1.25 V or 2.5 V and supports various interface options including parallel, SPI/QSPI/MICROWIRE/DSP compatible serial interfaces, and I²C.
Read onlineAnalog Devices AD5383 specifications
| Output Channels | 32 |
|---|---|
| Linearity Error (INL) | +1 LSB max |
| Differential Nonlinearity (DNL) | +1 LSB max |
| Zero-Scale Error | +4 mV max |
| Gain Temperature Coefficient | 2 ppm FSR/C typ |
| Short-Circuit Current | 40 mA max |
Source: Analog Devices AD5383 32-Channel 12-Bit Voltage Output DAC Datasheet
All Analog Devices AD5383 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature range for the AD5383?
The device operates from -40°C to +85°C.
From: Analog Devices AD5383 32-Channel 12-Bit Voltage Output DAC Datasheet
Does the AD5383 include an on-chip reference?
Yes, it includes a programmable internal 1.25 V/2.5 V reference.
From: Analog Devices AD5383 32-Channel 12-Bit Voltage Output DAC Datasheet
What is the resolution of the AD5383?
The AD5383 provides a 12‑bit resolution.
From: Analog Devices AD5383 32-Channel 12‑Bit Voltage Output DAC Datasheet
How many output channels does the AD5383 have?
It has 32 independent output channels.
From: Analog Devices AD5383 32-Channel 12‑Bit Voltage Output DAC Datasheet
