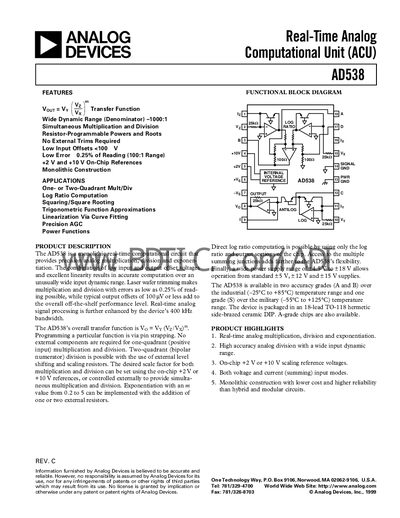

Analog Devices AD538 Datasheet
The AD538 provides real‑time analog computation for multiplication, division and exponentiation. It features a wide 1000:1 input dynamic range, low input offsets, and an error as low as 0.25 % of reading. On‑chip reference voltages of +2 V and +10 V allow scaling without external components.
The device is supplied in an 18‑lead TO‑118 hermetic DIP and operates from +4.5 V to +18 V. It is available in industrial (‑25 °C to +85 °C) and military (‑55 °C to +125 °C) temperature grades, with typical bandwidth of 400 kHz.
Analog Devices AD538 specifications
| Dynamic Range | 1000:1 |
|---|---|
| Input Offset | <100 µV |
| Error | 0.25 % of Reading (100:1 Range) |
| On‑Chip References | +2 V and +10 V |
| Bandwidth | 400 kHz |
| Package | 18‑lead TO‑118 hermetic side‑brazed ceramic DIP |
| Temperature Range (Industrial) | -25 °C to +85 °C |
| Temperature Range (Military) | -55 °C to +125 °C |
Source: Analog Devices AD538 Datasheet
All Analog Devices AD538 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the transfer function of the AD538?
The AD538’s transfer function is Vout = Vy · (Vz/Vx).
What is the maximum error for a 100:1 input range?
The maximum error is +0.25 % of reading plus 500 µV.
What voltage references are available on the AD538?
The AD538 provides an on‑chip +2 V unbuffered reference and a +10 V buffered reference.
What is the maximum supply voltage the AD538 can handle?
It can operate up to +18 V.
What is the transfer function of the AD538?
The overall transfer function is VO = VY · (VZ/VX)^m.
From: Analog Devices AD538 Real-Time Analog Computational Unit Datasheet
What supply voltage range does the AD538 support?
It operates from ±4.5 V up to ±18 V.
From: Analog Devices AD538 Real-Time Analog Computational Unit Datasheet
