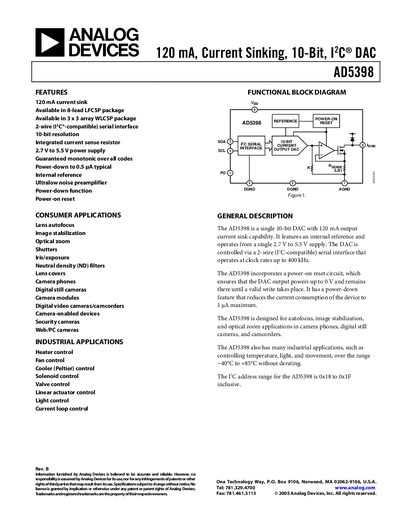

Analog Devices AD5398 Datasheet
Datasheet 16 pages · 435 KB · EN
The AD5398 is a single‑channel 10‑bit digital‑to‑analog converter offering up to 120 mA of current‑sink capability. It operates from a 2.7 V to 5.5 V supply and includes an internal reference, power‑on reset and power‑down functions.
Designed for consumer camera applications such as autofocus and image stabilization, it is also suitable for industrial control of heaters, fans, solenoids and other loads across a –40 °C to +85 °C temperature range.
Analog Devices AD5398 specifications
| Resolution | 10 bits |
|---|---|
| Maximum Sink Current | 120 mA |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Power‑down Current | 0.5 µA typical |
| Operating Temperature (Industrial) | –40 °C to +85 °C |
Source: Analog Devices AD5398 Datasheet
All Analog Devices AD5398 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output sink current of the AD5398?
The device can sink up to 120 mA of current.
What supply voltage range does the AD5398 require?
It operates from 2.7 V to 5.5 V.
What is the supply voltage range for the AD5398?
The device operates from 2.7 V to 5.5 V.
What is the maximum output sink current?
It can sink up to 120 mA of current.
