7.6 mm (0.3 inch) Micro Bright Seven Segment Displays products feature: optional colon for clock display, compact package, optional colors include AlGaAs red, high efficiency red, yellow, green, orange, evenly lighted segments, mitered corners on segments, surface color provides optimal contrast, ±50° viewing angle, flexible design, common anode or common cathode, right hand decimal point, ±1. Overflow character, categorized for luminous intensity, yellow and green, categorized for color, use of like categories yields a uniform display, high light output, high peak current, excellent for long digit string multiplexing, available intensity and color selection, see Intensity and Color Selected Displays Data Sheet, Sunlight Viewable AlGaAs

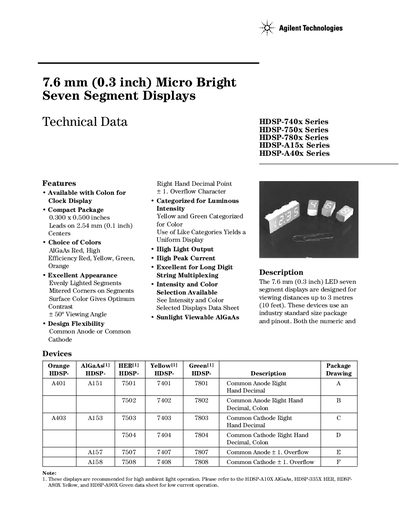

This document describes the technical data and features of the 7.6 mm (0.3 inch) Micro Bright Seven Segment Displays, including compact packaging, choice of colors, excellent appearance, design flexibility, high light output, and high peak current.

The 7.6 mm (0.3 inch) LED seven segment displays are designed for viewing distances up to 3 metres (10 feet). These devices use an industry standard size package and pinout. Both the numeric and symbols are available.
