This document describes the technical data and features of the 7.6 mm (0.3 inch) Micro Bright Seven Segment Displays, including compact packaging, choice of colors, excellent appearance, design flexibility, high light output, and high peak current.

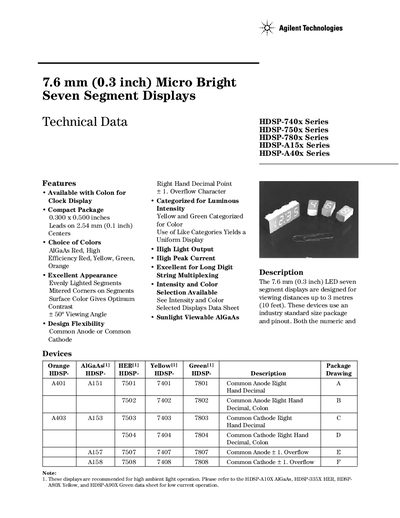

This document provides technical specifications for the Agilent HDSP-740x, HDSP-750x, HDSP-780x, HDSP-A15x, and HDSP-A40x series of 7.6 mm (0.3 inch) micro bright seven segment displays. These devices are designed for viewing distances up to 3 meters and feature an industry standard package size with a choice of colors including AlGaAs Red, High Efficiency Red, Yellow, Green, and Orange.
| Viewing Distance | up to 3 metres (10 feet) |
|---|---|
| Package Size | 7.6 mm (0.3 inch) |
| Operating Temperature Range | -20 to +100°C |
| Storage Temperature Range | -55 to +100°C |
| Peak Wavelength (Green) | 566 nm |
These devices are designed for viewing distances up to 3 metres (10 feet).
The compact package measures 0.300 x 0.500 inches.
