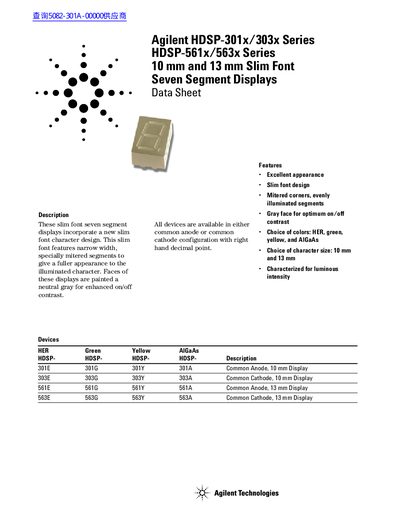

This data sheet provides information about Agilent HDSP-301x/303x Series HDSP-561x/563x Series 10 mm and 13 mm Slim Font Seven Segment Displays, including features, models, sizes, etc.
The HDSP‑301x/303x and HDSP‑561x/563x series are slim‑font seven‑segment displays featuring a narrow, mitered segment design and a neutral‑gray face for high on/off contrast. They are offered in common anode or common cathode configurations with a right‑hand decimal point, and support color options such as HER (high‑efficiency red), green, yellow, and AlGaAs.
Technical data include luminous intensity, forward voltage, peak wavelength, and absolute maximum ratings for each color variant. The devices are rated for operation from –40 °C to +80 °C (–20 °C for AlGaAs) and provide typical forward currents of up to 45 mA per segment. Detailed binning information, mechanical options, and cleaning/soldering guidelines are also provided.
| Operating Temperature Range | –40 °C to +80 °C |
|---|---|
| Forward Voltage (typical) | 2.50 V |
| Luminous Intensity (typical) | 2.00 cd/segment (HER) |
The displays are offered in HER (high‑efficiency red), green, yellow, and AlGaAs colors.
Both 10 mm and 13 mm character sizes are available.
