The TP-LINK TL-SF1008D 8-Port 10/100M desktop switch provides high-speed data processing capability and energy-saving technology, saving up to 40% power consumption. It supports plug and play, no configuration required.

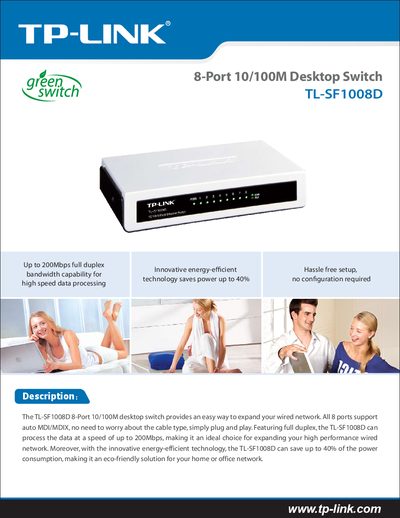

The TL‑SF1008D is an 8‑port 10/100 Mbps desktop Ethernet switch designed for home or office networks. It supports auto MDI/MDIX, plug‑and‑play installation and an energy‑efficient design that can reduce power consumption by up to 40%.\n\nThis guide provides an overview of the switch’s standards, interfaces, switching features, and technical specifications such as backplane bandwidth, forwarding rates, dimensions, and operating conditions. It also lists related TP‑Link products and regulatory information.
| Number of ports | 8 |
|---|---|
| Maximum full‑duplex bandwidth | 200 Mbps |
| Auto MDI/MDIX | Supported |
| Power saving | up to 40 % |
| Backplane bandwidth | 1.6 Gbps |
| Forwarding rate (10BASE‑T) | 14880 pps/port |
| Forwarding rate (100BASE‑TX) | 148800 pps/port |
| Dimensions (L×W×H) | 140 mm × 87 mm × 27.5 mm |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -40 °C to 70 °C |
| Operating humidity | 10 % to 90 % RH |
| Storage humidity | 5 % to 90 % RH |
| Power supply | External adapter |
| Supported IEEE standards | 802.3, 802.3u, 802.3x |
| Protocol | CSMA/CD |
| Duplex modes | Half and Full |
| Auto‑negotiation | Supported |
| Switching method | Store‑and‑Forward |
The TL‑SF1008D provides eight Ethernet ports.
No configuration is needed; the switch is plug‑and‑play with auto MDI/MDIX.
It can achieve up to 200 Mbps full‑duplex bandwidth.
The switch can reduce power consumption by up to 40 %.
