TL-POE10R PoE Splitter is a 1000Mbps Ethernet Power Splitter manufactured by TP-Link. It can split 1000Mbps Ethernet port and power port, converting 1 1000Mbps Ethernet port to 2 10/100/1000Mbps Ethernet ports and 2 48V power ports, making it easy to deploy network devices.

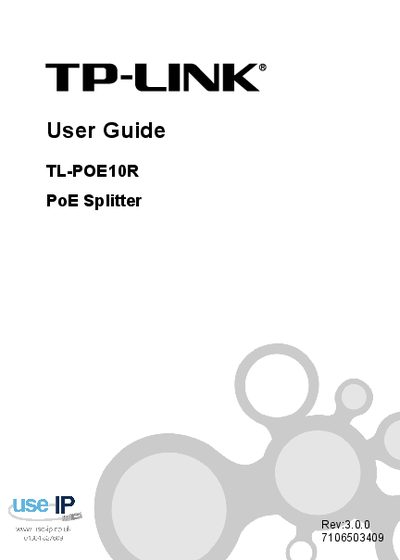

This guide introduces the TL-POE10R PoE Splitter, a compact device that delivers 5 V, 9 V, or 12 V DC power over an Ethernet cable to devices without native PoE support. It complies with IEEE 802.3, 802.3u, and 802.3af standards and works with any compatible PSE or PoE injector.
The manual details the external components, explains how to select the desired voltage with the power‑mode switch, and provides step‑by‑step wiring instructions for connecting the POWER+DATA IN, LAN OUT, and DC OUT ports. Safety notices, FCC/CE compliance information, and a full specification table are also included.
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
|---|---|
| Voltage Output | DC 5V, 9V or 12V |
| RJ45 Ports | Two 10/100Mbps RJ45 ports |
| DC Power Port | One DC Power port |
| Cabling Type | RJ45 CAT 5 UTP cable |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% RH, non‑condensing |
| Storage Humidity | 5%~90% RH, non‑condensing |
It can output 5 V, 9 V, or 12 V DC.
Use the power‑mode switch and turn it left or right to choose 12 V, 9 V, or 5 V.
It has two 10/100 Mbps RJ45 ports.
