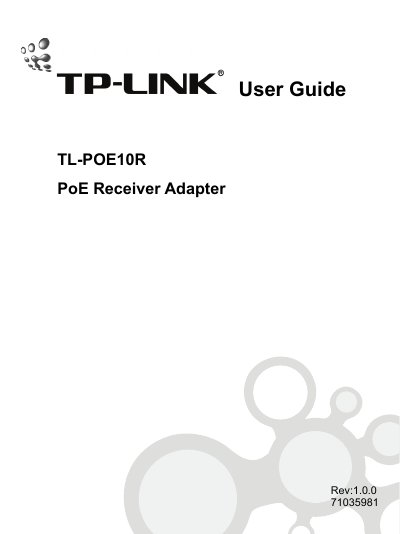

This document is a user guide for the TL-POE10R PoE Receiver Adapter, describing the features and characteristics of the product.
The TL-POE10R PoE Receiver Adapter converts Power over Ethernet to 5 V or 12 V DC for devices that lack a power connection. It complies with IEEE 802.3af and works with any compatible PoE source, allowing data and power to travel over a single Ethernet cable.
The guide details package contents, external component identification, wiring steps, and how to select the output voltage using the power‑mode switch. Safety notices, FCC/CE compliance, and technical specifications are also provided.
| Voltage Output | DC 5V or 12V |
|---|---|
| Power Output | 11.5W (5V) / 12W (12V) |
| Ports | Two 10/100M RJ45 ports, one DC power port |
| Cabling Type | RJ45 CAT‑5 UTP cable |
| LED Indicator | PWR (steady green when powered) |
| Operating Temperature | 0 °C to 40 °C |
It can output either 5 V DC or 12 V DC, selectable with the power‑mode switch.
Use the power‑mode switch; turning it left selects 5 V and right selects 12 V (default is 12 V).
The device has two 10/100 Mbps RJ45 ports (POWER+DATA IN and LAN OUT) and one DC power output port.
