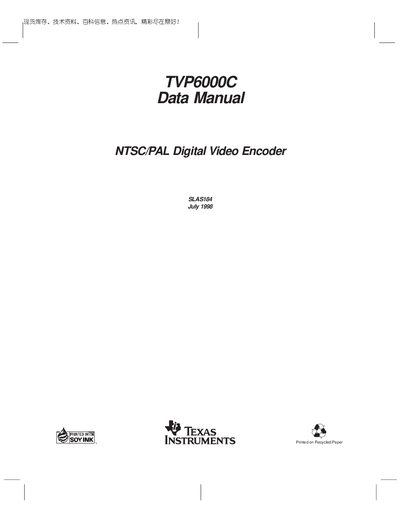

Texas Instruments TVP6000C Digital Video Encoder Data Manual
The TVP6000C is a digital video encoder designed for high‑quality, flicker‑free display of computer graphics, video, and internet content. It supports multiple video standards, offers advanced scaling, a 3‑tap antiflicker filter, and programmable video‑port interfaces.
The manual includes an introduction, feature list, functional block diagram, terminal assignments, detailed register descriptions, electrical characteristics, and mechanical data, giving designers the information needed to integrate the device into multimedia systems.
Texas Instruments TVP6000C specifications
| Digital Input Format (16‑Bit Port) | YUV 4:2:2 |
|---|---|
| Digital Input Format (8‑Bit Port) | YUV 4:2:2 (CCIR‑656) |
| Analog Output Formats | NTSC‑M, PAL‑B/D/G/H/I, PAL‑M, PAL‑N |
| Power Supply | 5 V operation |
| Package | 80‑pin TQFP |
Source: Texas Instruments TVP6000C Digital Video Encoder Data Manual
All Texas Instruments TVP6000C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video standards does the TVP6000C support?
It supports NTSC‑M and multiple PAL variants (PAL‑B/D/G/H/I, PAL‑M, PAL‑N).
From: Texas Instruments TVP6000C Digital Video Encoder Data Manual
Which digital input formats are available on the TVP6000C?
The device accepts YUV 4:2:2 on a 16‑bit port and YUV 4:2:2 (CCIR‑656) on an 8‑bit port.
From: Texas Instruments TVP6000C Digital Video Encoder Data Manual
What video output formats does the TVP6000C support?
It supports NTSC‑M, PAL‑B/D/G/H/I, PAL‑M, and PAL‑N output formats.
What is the package type of the TVP6000C?
The device is supplied in an 80‑pin TQFP package.
