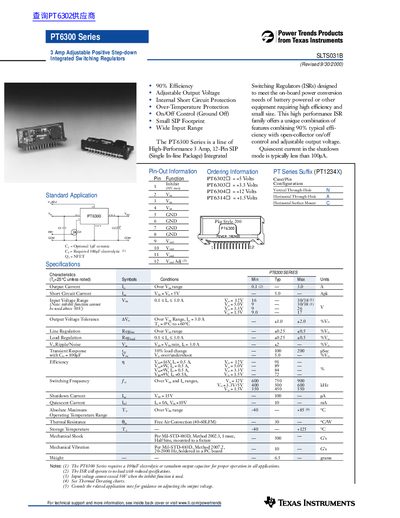

The PT6300 Series is a line of High-Performance 3 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulators (ISRs) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size. This high performance ISR family offers a unique combination of features combining 90% typical efficiency with open-collector on/off control and adjustable output voltage. Quiescent current in the shutdown mode is typically less than 100µA.
The PT6300 Series is a line of high-performance 3 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulators (ISRs) designed for on-board power conversion in battery-powered or other equipment requiring high efficiency and small size. The series offers a unique combination of features including 90% typical efficiency, open-collector on/off control, and adjustable output voltage, with quiescent current in shutdown mode typically less than 100µA.
| Output Current | 3.0 A |
|---|---|
| Short Circuit Current | 5.0 Apk |
| Input Voltage Range (Vo = 12V) | 16 — 30/38 V |
| Operating Temperature Range | -40 — +85 °C |
| Thermal Resistance (Free Air) | 30 °C/W |
| Switching Frequency (Vo = 12V) | 600 750 900 kHz |
| Shutdown Current | 100 µA |
| Quiescent Current | 10 mA |
The typical efficiency is 90%.
The output voltage can be adjusted higher or lower by adding a single external resistor.
