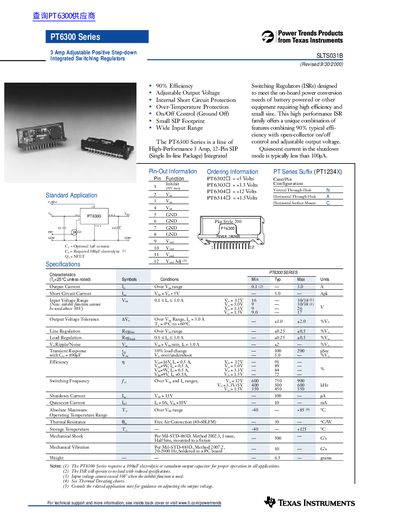

The PT6300 Series is a line of high-performance, 3-amp, 12-pin SIP (Single In-line Package) integrated switching regulators (ISRs) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size.
The PT6300 Series consists of high-performance 3 Amp, 12-Pin SIP Integrated Switching Regulators (ISRs) designed for battery-powered equipment requiring high efficiency and small size. These regulators offer a wide input voltage range and adjustable output voltage to meet specific on-board power conversion needs.
Key features include 90% typical efficiency, internal short circuit protection, over-temperature protection, and an on/off control function with ground off capability. The series is available in various fixed output voltage configurations, including +5V, +3.3V, +12V, and +1.5V.
| Output Current | 0.1 to 3.0 A |
|---|---|
| Input Voltage Range | 16 to 30V (Vo=12V) |
| Efficiency | 90% typical |
| Operating Temperature Range | -40 to +85°C |
| Switching Frequency | 600 to 900 kHz |
The typical efficiency is 90%.
The devices use a 12-Pin SIP (Single In-line Package).
