Key facts
- Brand
- Texas Instruments
- Model
- CD74ACT280
- Industry
- Industrial
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-02
Start here

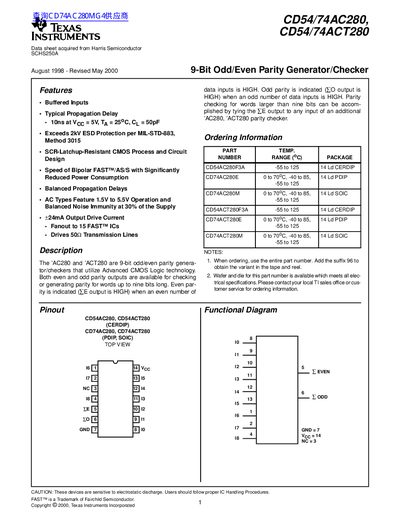

TEXAS INSTRUMENTS CD54/74AC280 CD54/74ACT280 9-Bit Odd/Even Parity Generator/Checker handbook(1)
The CD54/74AC280 and CD54/74ACT280 are 9-bit odd/even parity generator/checkers that utilize Advanced CMOS Logic technology. Both even and odd parity outputs are available for checking or generating parity for words up to nine bits long. Even parity is indicated when an even number of data inputs is HIGH, while odd parity is indicated when an odd number of data inputs is HIGH.
Read onlineTexas Instruments CD74ACT280 specifications
| Bit Width | 9-bit |
|---|---|
| Typical Propagation Delay | 10ns |
| Output Drive Current | +24mA |
| Fanout | 15 FAST™ ICs |
| ESD Protection | 2kV |
Source: TEXAS INSTRUMENTS CD54/74AC280 CD54/74ACT280 9-Bit Odd/Even Parity Generator/Checker handbook(1)
All Texas Instruments CD74ACT280 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the CD54/74AC280?
It is a 9-bit odd/even parity generator/checker that utilizes Advanced CMOS Logic technology.
From: TEXAS INSTRUMENTS CD54/74AC280 CD54/74ACT280 9-Bit Odd/Even Parity Generator/Checker handbook(1)
How is even parity indicated?
Even parity is indicated when the CE output is HIGH, which occurs when an even number of data inputs is HIGH.
From: TEXAS INSTRUMENTS CD54/74AC280 CD54/74ACT280 9-Bit Odd/Even Parity Generator/Checker handbook(1)
What is the typical propagation delay?
The typical propagation delay is 10ns at Voc = 5V, Ta = 25°C, and CL = 50pF.
From: TEXAS INSTRUMENTS CD54/74AC280 CD54/74ACT280 9-Bit Odd/Even Parity Generator/Checker handbook
Can this device check parity for words larger than nine bits?
Yes, by tying the YE output to any input of an additional AC280 or ACT280 parity checker.
From: TEXAS INSTRUMENTS CD54/74AC280 CD54/74ACT280 9-Bit Odd/Even Parity Generator/Checker handbook
What is the maximum supply voltage for the CD74ACT280?
The maximum supply voltage for the CD74ACT280 is 5.5V.
From: Texas Instruments CD74AC280/CD74ACT280 9-Bit Parity Generator Datasheet
What is the typical propagation delay for the CD74ACT280 at 5V?
The typical propagation delay is 19.6 ns at 5V.
From: Texas Instruments CD74AC280/CD74ACT280 9-Bit Parity Generator Datasheet
