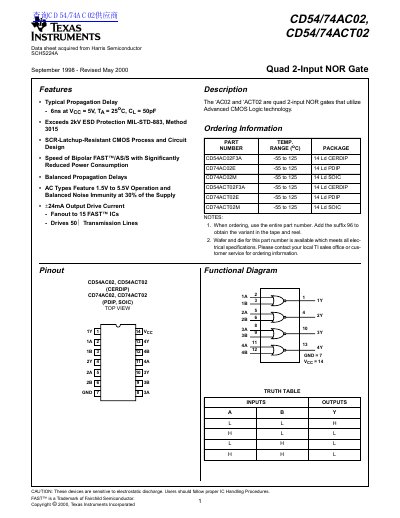

TEXAS INSTRUMENTS CD54/74AC02 CD54/74ACT02 Manual
This document is a datasheet for the CD54AC02, CD54ACT02, CD74AC02, and CD74ACT02 quad 2-input NOR gates manufactured by Texas Instruments. These devices utilize advanced CMOS logic technology and are designed for various digital circuit applications. This manual is written in Chinese.
Read onlineTexas Instruments CD74ACT02 specifications
| Typical Propagation Delay | 6ns at V CC = 5V, TA = 25oC, CL = 50pF |
|---|---|
| ESD Protection | Exceeds 2kV ESD Protection MIL-STD-883, Method 3015 |
| Supply Voltage Range (AC Types) | 1.5V to 5.5V |
| Supply Voltage Range (ACT Types) | 4.5V to 5.5V |
| Operating Temperature Range | -55oC to 125oC |
| Output Drive Current | -24mA |
All Texas Instruments CD74ACT02 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay for this NOR gate at a supply voltage of 5V?
The typical propagation delay is 6ns when operating at V CC = 5V, TA = 25oC, and CL = 50pF.
What is the maximum supply voltage range for AC Types?
AC Types operate with a supply voltage range of 1.5V to 5.5V.
How many NOR gates are contained in each CD54ACT02 or CD74ACT02 device?
Each device contains four independent 2‑input positive‑NOR gates.
From: Texas Instruments CD54ACT02 / CD74ACT02 Quadruple 2-Input Positive-NOR Gate Datasheet
What is the maximum output drive current for these gates?
The maximum output drive current is ±24 mA.
From: Texas Instruments CD54ACT02 / CD74ACT02 Quadruple 2-Input Positive-NOR Gate Datasheet
