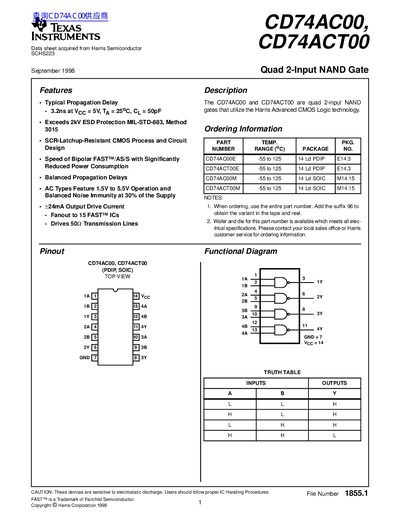

Texas Instruments CD74AC00/CD74ACT00 Quad NAND Gate Datasheet
Datasheet 5 pages · 28 KB · EN
This document is a technical datasheet for the CD74AC00 and CD74ACT00 integrated circuits. These devices are quad 2-input NAND gates utilizing Harris Advanced CMOS Logic technology. The AC types operate with a supply voltage range of 1.5V to 5.5V, while the ACT types require 4.5V to 5.5V.
Read onlineAll Texas Instruments CD74ACT00 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay at 5V?
The typical propagation delay is 3.2ns when Vcc is 5V, Ta is 25°C, and CL is 50pF.
From: Texas Instruments CD74AC00/CD74ACT00 Quad NAND Gate Datasheet
What is the operating supply voltage range for AC types?
The device supports operation from 1.5V to 5.5V.
From: Texas Instruments CD74AC00/CD74ACT00 Quad NAND Gate Datasheet
How much ESD protection does the device provide?
The device exceeds 2 kV ESD protection according to MIL‑STD‑883 standards.
