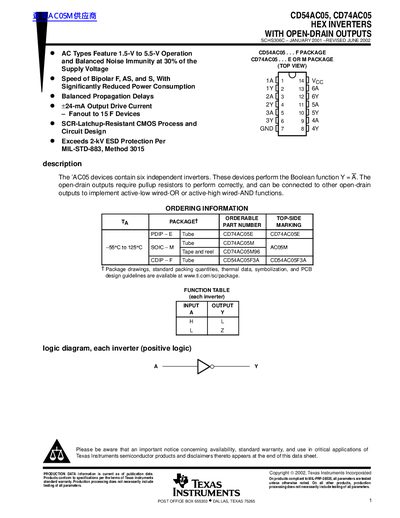

Texas Instruments CD54AC05/CD74AC05 Hex Inverters Datasheet
The document describes the CD54AC05 and CD74AC05 devices, which contain six independent inverters performing the Boolean function Y = A. These components feature open-drain outputs that require pullup resistors to operate correctly and support a wide supply voltage range from 1.5V to 5.5V.
Read onlineTexas Instruments CD74AC05 specifications
| Supply Voltage Range (AC Types) | 1.5V to 5.5V |
|---|---|
| Supply Voltage Range (ACT Types) | 4.5V to 5.5V |
| Operating Temperature Range | -55°C to 125°C |
| Typical Propagation Delay (AC Types) | 3.5ns at Vcc = 5V |
| Output Drive Current | +24mA |
Source: TEXAS INSTRUMENTS CD74AC04 CD74ACT04 CD74AC05 CD74ACT05 Manual
All Texas Instruments CD74AC05 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What Boolean function do these inverters perform?
The devices perform the Boolean function Y = A.
From: Texas Instruments CD54AC05/CD74AC05 Hex Inverters Datasheet
What supply voltage range is required for operation?
The devices require a supply voltage between 1.5 V and 5.5 V.
From: Texas Instruments CD54AC05/CD74AC05 Hex Inverters Datasheet
What is the maximum supply voltage for the CD74AC/ACT04/05 inverters?
The maximum supply voltage is 6V for DC ratings and 5.5V for AC operation.
From: TEXAS INSTRUMENTS CD74AC04 CD74ACT04 CD74AC05 CD74ACT05 Manual
What is the maximum propagation delay for the AC types at 5V?
The maximum propagation delay is 8.5 ns for AC types at 5V.
From: TEXAS INSTRUMENTS CD74AC04 CD74ACT04 CD74AC05 CD74ACT05 Manual
