Start here

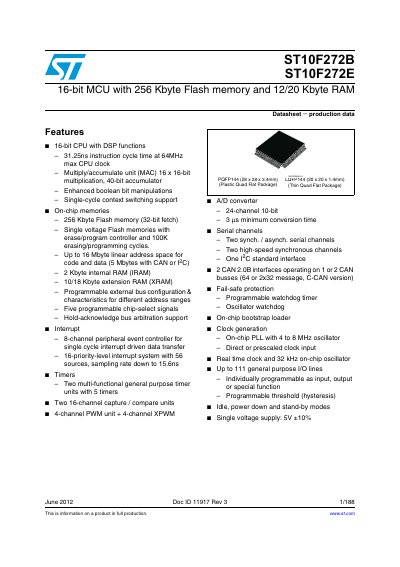

STMicroelectronics ST10F272B/ST10F272E 16-bit MCU Datasheet
This document is a technical datasheet for the ST10F272B and ST10F272E 16-bit microcontrollers. The devices feature a CPU with DSP functions, including a multiply/accumulate unit, and operate at a maximum clock frequency of 64MHz with a 31.25ns instruction cycle time. They are equipped with 256 Kbyte of Flash memory and up to 20 Kbyte of extension RAM.
Read onlineSTMicroelectronics ST10F272B specifications
| CPU Clock Frequency | 64MHz |
|---|---|
| Flash Memory Size | 256 Kbyte |
| Internal RAM Size | 2 Kbyte |
| Extension RAM Size | 10/18 Kbyte |
| A/D Converter Channels | 24-channel |
| CAN Interfaces | 2 CAN 2.0B |
| Supply Voltage | 5V +10% |
| Package Type | PQFP144 / LQFP144 |
Source: STMicroelectronics ST10F272B/ST10F272E 16-bit MCU Datasheet
All STMicroelectronics ST10F272B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
- ST AN2021 handbook 39 p
Questions answered in these manuals
What is the maximum CPU clock speed?
The maximum CPU clock speed is 64MHz.
From: STMicroelectronics ST10F272B/ST10F272E 16-bit MCU Datasheet
How much Flash memory is available?
The device includes 256 Kbyte of Flash memory.
From: STMicroelectronics ST10F272B/ST10F272E 16-bit MCU Datasheet
What is the goal of this document?
To highlight differences between ST10F269 and ST10F272 devices for designers adapting existing applications.
From: ST AN2021 handbook
What are the main differences between ST10F272B and ST10F272E?
They differ only in terms of XRAM memory size and XPeripherals.
From: ST AN2021 handbook
