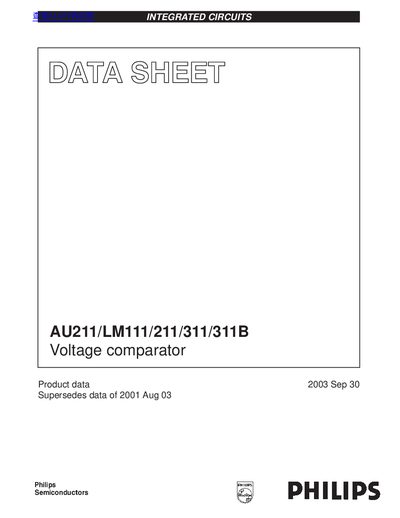

Philips AU211/LM111/211/311/311B Voltage Comparator Datasheet
This document provides product data for the Philips AU211, LM111, LM211, LM311, and LM311B voltage comparator series. The devices are designed to operate over a wide range of supply voltages, from standard +15 V op amp supplies down to a single 3 V supply. They feature low input currents and outputs compatible with RTL, DTL, TTL, and MOS circuits.
Read onlinePhilips LM111 specifications
| Maximum input bias current | 150 nA (LM311: 250 nA) |
|---|---|
| Maximum offset current | 20 nA (LM311: 50 nA) |
| Differential input voltage range | +30 V |
| Power consumption | 135 mW at +15 V |
| High sensitivity | 200 V/mV |
| Operating ambient temperature range (AU211) | -40 to +125 °C |
| Operating ambient temperature range (LM111) | -55 to +125 °C |
| Operating ambient temperature range (LM311/LM311B) | 0 to +70 °C |
Source: Philips AU211/LM111/211/311/311B Voltage Comparator Datasheet
All Philips LM111 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the response time of the LM111 series?
The response time is 200 ns.
From: Philips AU211/LM111/211/311/311B Voltage Comparator Datasheet
What is the maximum power dissipation for an N package at 25 °C?
The maximum power dissipation for an N package at Tamb = 25 °C is 1190 mW.
From: Philips AU211/LM111/211/311/311B Voltage Comparator Datasheet
What is the maximum input bias current for the LM311?
The maximum input bias current for the LM311 is 250nA.
From: Philips Semiconductors LM111/211/311/ LM311B Voltage Comparator Datasheet
Can the LM311B operate from a single 3V supply?
Yes, the LM311B is designed to operate from a single 3V supply.
From: Philips Semiconductors LM111/211/311/ LM311B Voltage Comparator Datasheet
