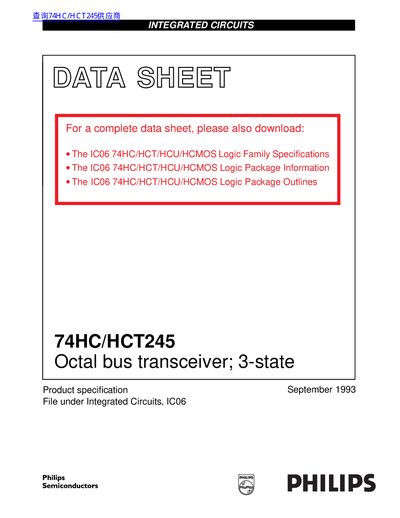

PHILIPS 74HC/HCT245 Octal bus transceiver; 3-state handbook

This data sheet provides detailed information about the 74HC/HCT245 product, including features, functions, and specifications.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 43 KB
Published: 02 July, 2012
Updated: 01 October, 2023
Models: 74HC, HCT245
MD5 checksum: AD3E6A587D62CBFE0FCAE50724856598
PDF: PHILIPS 74HC/HCT245 Octal bus transceiver; 3-state handbook PDF

About this manual

This document is a product specification datasheet for the Philips 74HC/HCT245 integrated circuit. It describes the device as a high-speed Si-gate CMOS octal bus transceiver that is pin compatible with low power Schottky TTL (LSTTL). The device features non-inverting 3-state outputs in both send and receive directions, controlled by an output enable (OE) input and a direction control (DIR) input.

What's inside

General Description
Quick Reference Data
Pin Description
Function Table
DC Characteristics for 74HC
DC Characteristics for 74HCT
AC Waveforms
Package Outlines

Frequently asked questions

What is the maximum operating temperature range for the 74HCT245?

The device operates from -40 to +125 degrees Celsius.

How much input capacitance does each pin have?

Each pin has an input capacitance of 3.5 pF.
