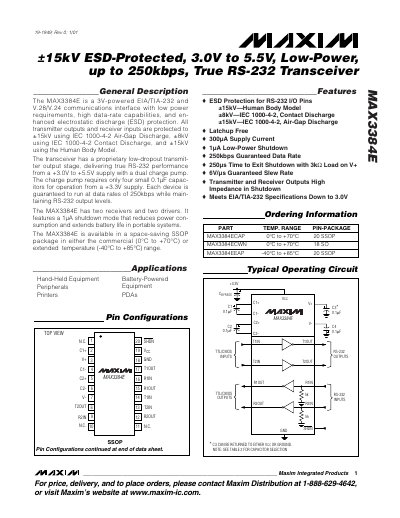

Maxim MAX3384E RS-232 Transceiver Datasheet
The Maxim MAX3384E is a 3 V‑powered EIA/TIA‑232 and V.28/V.24 communications interface designed for low‑power, high‑data‑rate applications. It features a proprietary low‑dropout dual charge‑pump that provides true RS‑232 voltage levels from a +3.0 V to +5.5 V supply, and it guarantees operation up to 250 kbps while consuming only 1 µA in shutdown mode.
The device includes two RS‑232 drivers and two receivers, supports a wide temperature range (commercial 0 °C to +70 °C or extended –40 °C to +85 °C), and offers robust ESD protection (±15 kV HBM, ±8 kV IEC contact, ±15 kV IEC air‑gap). It is supplied in a space‑saving 20‑pin SSOP package and is suited for hand‑held equipment, battery‑powered peripherals, printers, and PDAs.
Maxim MAX3384E specifications
| Supply Voltage | +3.0 V to +5.5 V |
|---|---|
| Maximum Data Rate | 250 kbps |
| Shutdown Supply Current | 1 µA |
| ESD Protection | ±15 kV HBM, ±8 kV IEC contact, ±15 kV IEC air‑gap |
| Operating Temperature Range | 0 °C to +70 °C (commercial) or –40 °C to +85 °C (extended) |
| Package Type | 20‑pin SSOP |
| Number of Drivers / Receivers | 2 drivers, 2 receivers |
All Maxim MAX3384E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the MAX3384E?
The MAX3384E is guaranteed to operate at data rates up to 250 kbps.
How much current does the MAX3384E draw in shutdown mode?
In shutdown mode the device consumes only about 1 µA of supply current.
What is the maximum data rate of the MAX3384E?
The MAX3384E guarantees a data rate of up to 250 kbps.
From: Maxim MAX3384E Datasheet
What ESD protection levels does the MAX3384E provide?
It is protected to +15 kV (Human Body Model), +8 kV (IEC contact discharge) and +15 kV (IEC air‑gap discharge).
From: Maxim MAX3384E Datasheet
