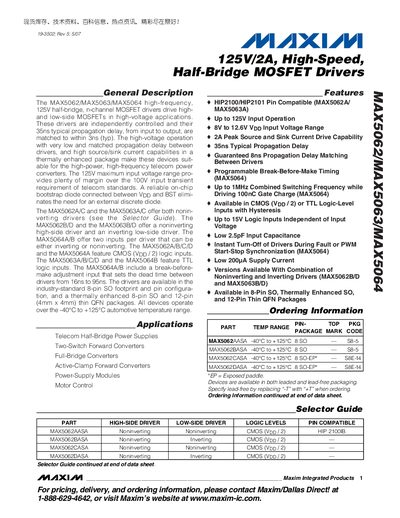

Maxim MAX5062/MAX5063/MAX5064 Half-Bridge MOSFET Driver Datasheet
The MAX5062, MAX5063, and MAX5064 are 125 V, 2 A high‑speed half‑bridge MOSFET driver devices designed for telecom power converters, motor control, and other high‑frequency applications. They feature independent high‑side and low‑side drivers with typical propagation delays of 35 ns and programmable break‑before‑make timing.
The datasheet includes electrical characteristics, absolute maximum ratings, pin‑out tables for each device variant, package information for 8‑pin SO and 12‑pin thin QFN packages, and a selector guide that shows which driver configurations are non‑inverting, inverting, or mixed. Ordering information and contact details for Maxim Integrated Products are also provided.
Maxim MAX506 specifications
| Maximum Input Voltage | 125 V |
|---|---|
| Typical Propagation Delay | 35 ns |
| Peak Source/Sink Current | 2 A |
| Operating Temperature Range | -40 °C to +125 °C |
| Logic Input Voltage Range (CMOS) | 8 V to 12.6 V (Vpp/2) |
Source: Maxim MAX5062/MAX5063/MAX5064 Half-Bridge MOSFET Driver Datasheet
All Maxim MAX506 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the MAX5062/5063/5064 drivers?
The typical propagation delay from input to output is 35 ns.
From: Maxim MAX5062/MAX5063/MAX5064 Half-Bridge MOSFET Driver Datasheet
What is the maximum input voltage rating for these drivers?
The devices are rated for a maximum input voltage of 125 V.
From: Maxim MAX5062/MAX5063/MAX5064 Half-Bridge MOSFET Driver Datasheet
What is the typical propagation delay of the drivers?
The typical propagation delay is 35 ns.
From: Maxim MAX5062/MAX5063/MAX5064 Half-Bridge MOSFET Driver Datasheet
What is the maximum input voltage rating?
The drivers are rated for a maximum input voltage of 125 V.
From: Maxim MAX5062/MAX5063/MAX5064 Half-Bridge MOSFET Driver Datasheet
What is the input voltage range for the MAX5060/MAX5061?
The devices accept an input voltage of 4.75 V‑5.5 V or 7 V‑28 V.
From: Maxim MAX5060/MAX5061 Average-Current-Mode DC-DC Controller Datasheet
What is the maximum output current these controllers can deliver?
They can provide up to 30 A of output current.
From: Maxim MAX5060/MAX5061 Average-Current-Mode DC-DC Controller Datasheet
