Start here

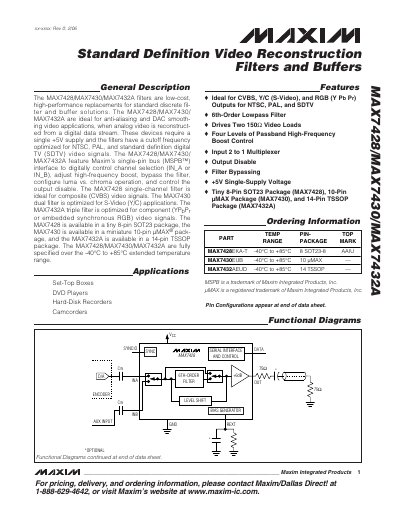

Maxim MAX7428/MAX7430/MAX7432A Video Reconstruction Filter and Buffer Datasheet
The MAX7428/MAX7430/MAX7432A family provides low‑cost, high‑performance video reconstruction filters and buffers for standard‑definition video signals. They operate from a single +5 V supply and are specified over a –40 °C to +85 °C temperature range. The devices support NTSC, PAL, and SDTV video standards and drive two 150 Ω video loads with a 6th‑order low‑pass filter.
Key features include a Maxim Single‑Pin Bus (MSPB) digital control interface, four programmable high‑frequency boost levels, selectable filter bypass, and three package options (8‑pin SOT23, 10‑pin µMAX, 14‑pin TSSOP). Applications cover set‑top boxes, DVD players, hard‑disk recorders, camcorders, and other consumer video equipment.
Maxim MAX743 specifications
| Supply Voltage | +5 V ±10 % |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Output Load Capability | Drives two 150 Ω video loads |
| Filter Order | 6th‑order low‑pass |
| High‑Frequency Boost Levels | Four programmable levels |
Source: Maxim MAX7428/MAX7430/MAX7432A Video Reconstruction Filter and Buffer Datasheet
All Maxim MAX743 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage do the MAX7428/MAX7430/MAX7432A devices require?
They operate from a single +5 V supply.
From: Maxim MAX7428/MAX7430/MAX7432A Video Reconstruction Filter and Buffer Datasheet
How many video loads can the output buffer drive?
The output buffer can drive two 150 Ω video loads.
From: Maxim MAX7428/MAX7430/MAX7432A Video Reconstruction Filter and Buffer Datasheet
What are the package types for each model?
MAX7428 is in an 8‑pin SOT‑23 package, MAX7430 in a 10‑pin uMAX package, and MAX7432 in a 14‑pin TSSOP package.
What is the operating temperature range of these devices?
They are specified for –40 °C to +85 °C.
What supply voltage does the MAX7438/MAX7439 require?
The devices operate from dual +5 V supplies.
From: Maxim MAX7438/MAX7439 Video Reconstruction Filter Datasheet
What is the maximum attenuation in the stopband?
The stopband provides at least 55 dB attenuation at 27 MHz.
From: Maxim MAX7438/MAX7439 Video Reconstruction Filter Datasheet
