Start here

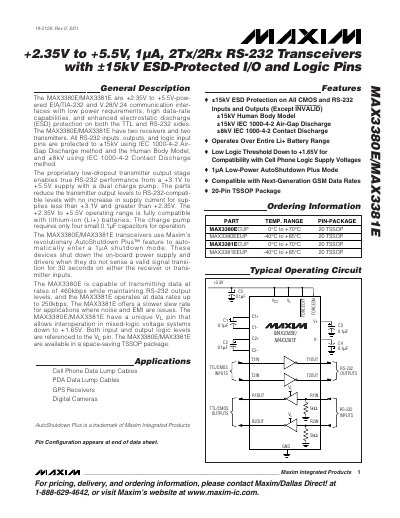

Maxim MAX3380E/MAX3381E RS-232 Transceiver Datasheet
The MAX3380E and MAX3381E are dual‑channel RS‑232 transceivers that operate from +2.35 V to +5.5 V and feature a low‑power AutoShutdown Plus mode that reduces supply current to 1 µA when idle. They provide ±15 kV ESD protection on all I/O pins and include a separate logic‑level supply (V L) for flexible interfacing.
The devices are supplied in a 20‑pin TSSOP package, support data rates up to 460 kbps (MAX3380E) or 250 kbps (MAX3381E), and operate over a wide temperature range. Detailed pin descriptions, electrical characteristics, timing diagrams, and ESD test information are provided.
Maxim MAX3381E specifications
| Supply Voltage Range | +2.35 V to +5.5 V |
|---|---|
| Logic Level Supply (V L) | +1.65 V to +5.5 V |
| Maximum Data Rate (MAX3380E) | 460 kbps |
| Maximum Data Rate (MAX3381E) | 250 kbps |
| AutoShutdown Supply Current | 1 µA |
| ESD Protection | ±15 kV (Human Body Model, IEC 1000‑4‑2 Air‑Gap) |
| Package | 20‑pin TSSOP |
| Operating Temperature Range | –40 °C to +85 °C (MAX3380E/EUP, MAX3381E/EUP) |
Source: Maxim MAX3380E/MAX3381E RS-232 Transceiver Datasheet
All Maxim MAX3381E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the MAX3380E/MAX3381E support?
They operate from +2.35 V up to +5.5 V.
What is the maximum data rate of the MAX3380E?
The MAX3380E can transmit at up to 460 kbps.
What is the maximum data rate of the MAX3380E?
The MAX3380E can transmit data at up to 460 kbps.
What ESD protection rating do these transceivers have?
All I/O pins are protected to +15 kV using IEC 1000‑4‑2 air‑gap discharge and Human Body Model methods.
