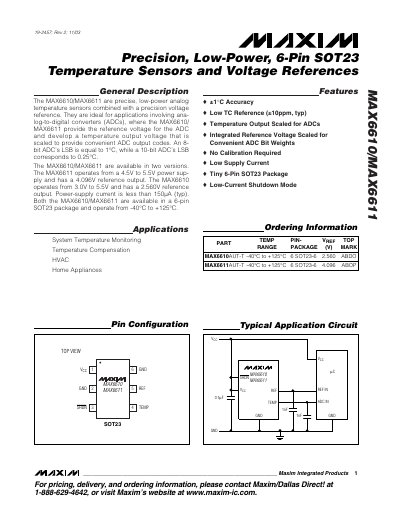

Maxim MAX6610/MAX6611 Temperature Sensor and Voltage Reference Datasheet
The MAX6610 and MAX6611 are precise, low‑power analog temperature sensors that include a precision voltage reference. They are supplied in a 6‑pin SOT‑23 package and operate over a temperature range of –40 °C to +125 °C, making them suitable for system temperature monitoring, temperature compensation, HVAC, and home‑appliance applications.
Key features include ±1 °C accuracy, a reference output of 2.560 V (MAX6610) or 4.096 V (MAX6611), low supply current (typical 150 µA, 1 µA in shutdown), and the ability to drive loads up to 1 mA on the REF pin and 0.2 µF on the TEMP pin. The devices provide linear temperature‑to‑voltage conversion (10 mV/°C for MAX6610, 16 mV/°C for MAX6611) and include a shutdown pin for power‑saving operation.
Maxim MAX6610 specifications
| Supply Voltage Range (MAX6610) | 3.0 V to 5.5 V |
|---|---|
| Reference Output Voltage (MAX6610) | 2.560 V |
| Reference Output Voltage (MAX6611) | 4.096 V |
| Typical Supply Current (normal operation) | 150 µA |
| Supply Current (shutdown mode) | 1 µA max |
| Accuracy | ±1 °C |
| Package | 6‑pin SOT‑23 |
| Operating Temperature Range | –40 °C to +125 °C |
